PEGASUS G+VHZ - Bandsaw machines Manual

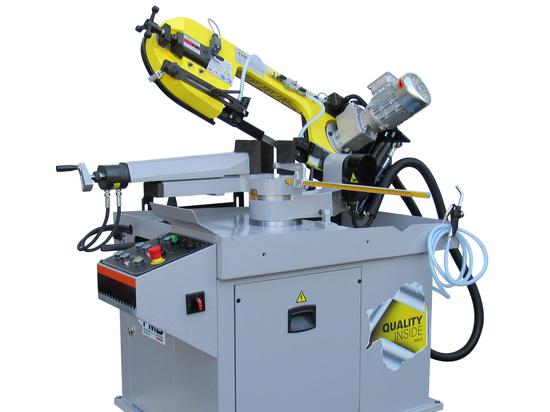

Gravitational band saw machine to cut from 0° to 60° right

Head structure in 3 parts: special aluminium alloy, steel and cast iron. Dynamometric blade tensioning. Broken blade micro. Head gravity feeding system, hydraulic cylinder and front valve for feeding regulation. Motorized blade cleaning brush. Blade guide with combined action of side bearings, carbide plates and top bearing. Direct drive: Reduction gear box with inclined grinded case hardened teeth lubricated with long lasting grease. Connection of the motor wheel to a flange with two conical bearings. VHZ electronical blade speed regulation for a wide range of blade speed selection. Material clamping vice with rack system, manual positioning and fast clamping system. Ergonomic working table and control panel. Head rotation angle stop at 0°,45° and 60°. Degrees measuring system, graduated scale and rugged in construction locking lever. Loading side: Roller table on the basement with 2 free rollers for material support. Heavy duty basement. Sheet metal construction in different thickness, chips holding sides. Front door with key locking. Hydraulic cooling pump with 30 l capacity tank for feeding both blade guides. Electrical cabinet with 24VAC, main switch and electric drives and blade speed analogic regulator. Total protection against highest voltage and short circuit current. Protection level IP 55. Line voltage: 400V/50Hz/3Ph standard (230V/50Hz/1Ph-230V/50Hz/3Ph- 220V/60Hz/3Ph-440V/60Hz/3Ph available). Machine colours: yellow RAL 1018 and grey RAL 7036.
