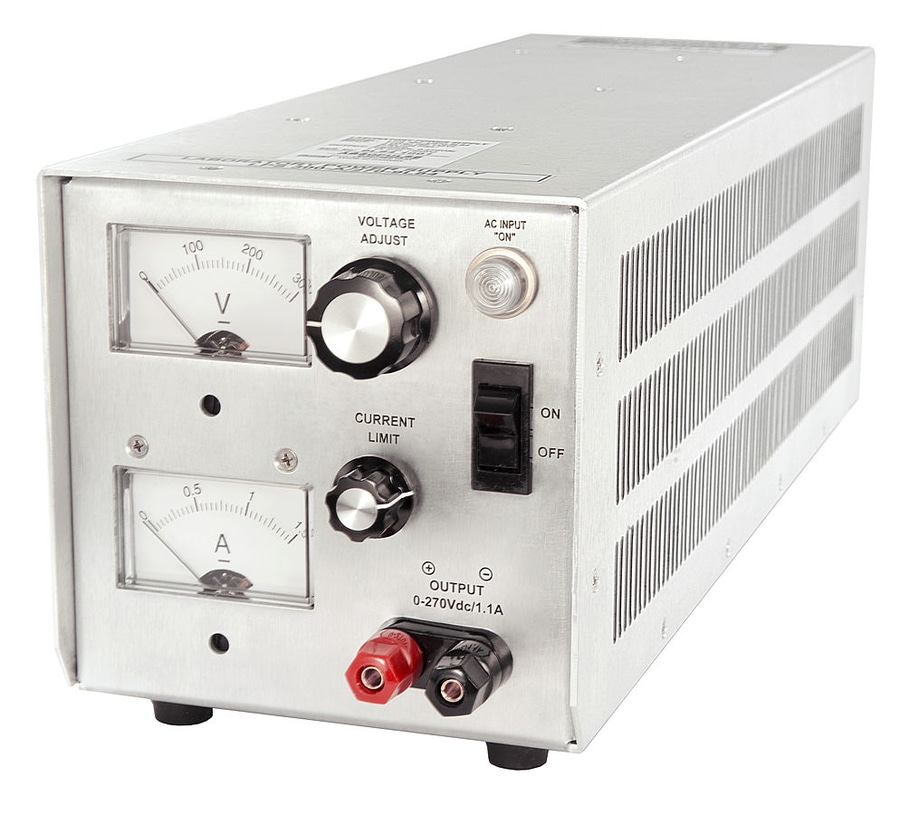

300W AC-DC Variable Output Laboratory Power Supply

The unit provides a variable output range of 0V-270Vdc. The output voltage is adjustable by a potentiometer knob which is located on front panel of the unit. Adjustment by analog control voltage is available on request. Output voltage and current are displayed on analog meters on the front panel of the unit for easy access. An output ‘ON'' green LED, output binding post terminals and ON/OFF switch are also located on the front-panel. Nominal input is 115Vac, with a 95-132Vac operating range. This benchtop power supply is cooled by natural air convection.

More information

Details

Absopulse Electronics Ltd.

Keywords

DC/DC converters

Associated Trend items

600Vdc (450V to 800V) input, 400VA Industrial DC-AC Sine Wave Inverters

ABSOPULSE Electronics has released the CSH-400-F6 series of heavy-duty, high input voltage DC-AC sine wave inverters.

The units deliver 400VA pure sinewave output voltage. They convert 600Vdc industrial input voltage (450V to 800V operating range) to an isolated sine wave output of 115Vac continuous at 60Hz or 400Hz, or 230Vac continuous at 50Hz. The design topology allows for input voltages of up to 1200Vdc. Other output power levels including a 300VA version are also available.

More information

1000Vdc Input Industrial DC-DC Converters deliver 500W

High DC-input voltages, wide DC-input ranges

ABSOPULSE Electronics’ HVI 500-1K-XX-FX Series of DC-DC converters are designed for rugged industrial applications that require high input voltages and wide DC-input ranges. The converters accept a nominal input voltage of 1000Vdc with an 800Vdc to 1200Vdc operating input range. The 500W units provide 36V, 48V, 110V, 125dc or custom outputs. The input meets EN55022 C...

More information

1000W, 3-phase, high input voltage AC-DC power supplies

Accepts high input voltage: 400Vac (360-440Vac range) or 480Vac (430-530Vac range)

ABSOPULSE Electronics' HTP 1K-F6W is a compact, three-phase, high input voltage AC-DC power supply. The 1000W units operate from a 3-phase line input of either 400Vac (360-440Vac range) or 480Vac (430-530Vac range). They provide a single output of 24V, 48V, 125Vdc or custom. Typical applications include factory automation, industrial machinery and equipment. The HTP 1...

More information
