UVG132-Germany

BIOGAS COMPRESSOR

LOCATION: GERMANY
FLUID: Biogas
POWER INSTALLED: 160 kW
INLET PRESSURE: 400 mbar(g)
WORKING PRESSURE: Up to 14 bar(g)
FLOW RATE: 0<441<882 Nm³/h
AMBIENT TEMPERATURE: -10/+40 °C

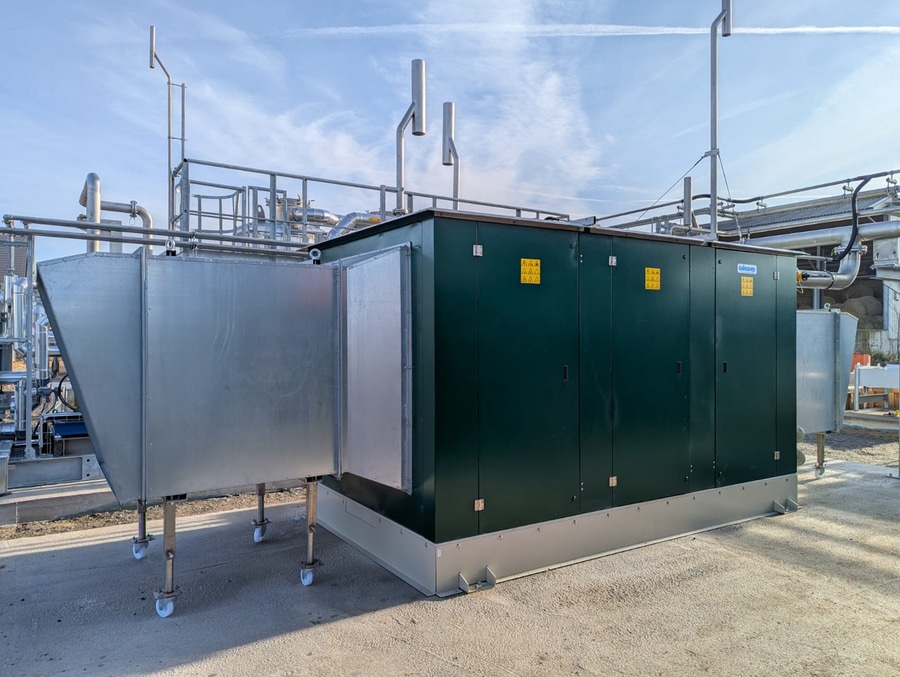

Screw biogas compressor for upgrading located in Germany. Designed for classified Atex Zone 2 for outdoor installation. It is air cooled and completed with fine filtration, temperature control, heat recovery, electro-pneumatic bypass valve and controlled by PLC.
The compressor is equipped with silencers (maximum noise level: 65 dB(A) at 10 meters).
