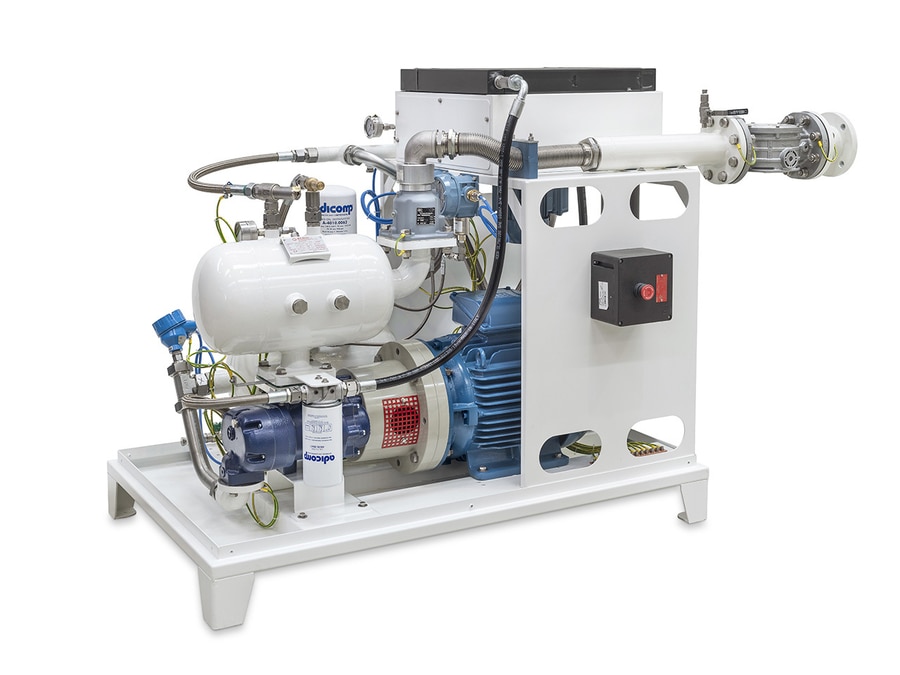

VGE15-USA

NATURAL GAS COMPRESSOR

LOCATION: USA
FLUID: Natural Gas
POWER INSTALLED: 18.5 kW
INLET PRESSURE: 25<100 mbar(g)
WORKING PRESSURE: Up to 5.51 bar(g)
FLOW RATE: 0<65<121 Nm³/h
AMBIENT TEMPERATURE: +3/+40 °C

Screw compressor for natural gas installed in the USA to feed Capstone microturbines. Designed in compliance with ASME and UL standards (Class 1 Division 2) for indoor installation. It is air cooled and completed with medium filtration, mechanical by-pass valve and controlled by PLC.

More information

Details

Via Scotte, 8, 36033 Isola Vicentina VI, Italy

Adicomp S.p.A.
