BVG400/VG315-Brazil
BIOGAS COMPRESSORS / RNG GRID INJECTION

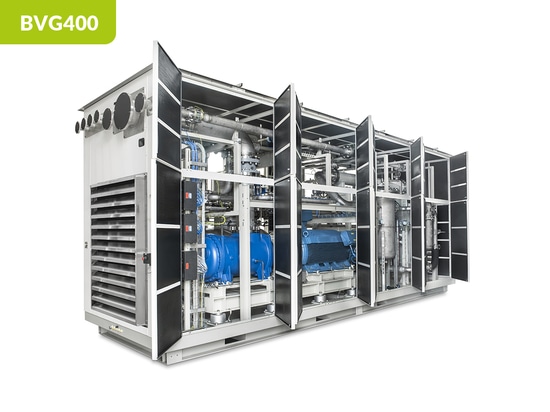

BVG 400
LOCATION: BRAZIL
FLUID: Biogas
POWER INSTALLED: 515 kW
INLET PRESSURE: 300 mbar(g)
WORKING PRESSURE: Up to 8 bar(g)
FLOW RATE: 0<1700<3400 Nm³/h
AMBIENT TEMPERATURE: -10/+40°C

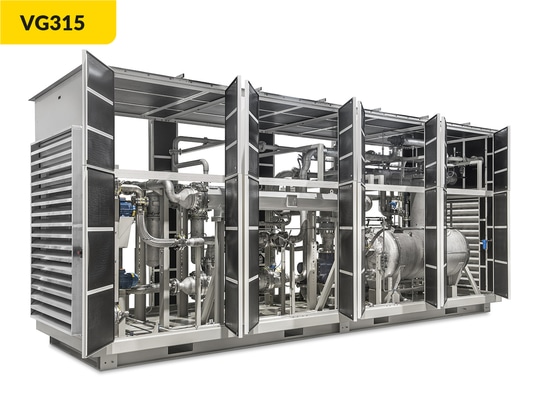

VG 315
LOCATION: BRAZIL
FLUID: Biomethane
POWER INSTALLED: 400 kW
INLET PRESSURE: Up to 1 bar(g)
WORKING PRESSURE: Up to 8 bar(g)
FLOW RATE: 0<2200<3400 Nm³/h
AMBIENT TEMPERATURE: -10/+40°C

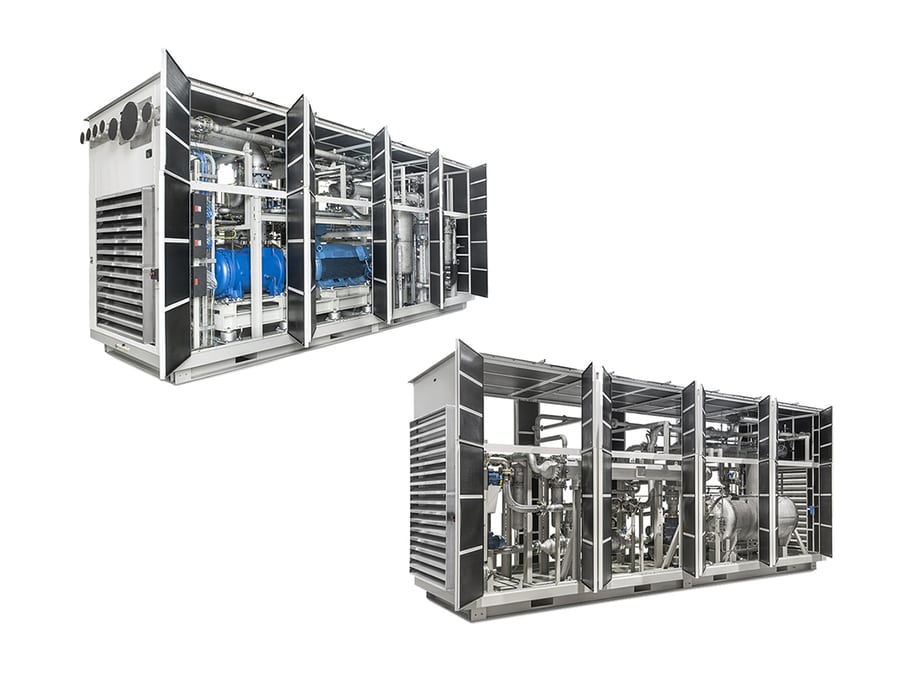

Two screw compressors for biogas upgrading and biomethane grid injection located in Brazil.
The first unit (BVG 400) is dedicated to biogas upgrading. It is water-cooled and equipped with fine filtration, an electro-pneumatic by-pass system, and a bleed valve for depressurization to vent.
The second unit (VG 315) is used for biomethane grid injection. It is air-cooled and also equipped with fine filtration, an electro-pneumatic by-pass system, and a bleed valve for depressurization to vent.
Both compressors are PLC-controlled and designed in compliance with Brazilian market standards (INMETRO and NR10, NR12, NR13, NR17) for outdoor installation.
