High-Purity PTFE Hose Solution for Pharma, Food & Industrial Application

High-performance hose engineered for superior chemical resistance, high pressure, and hygienic fluid transfer across critical industries.

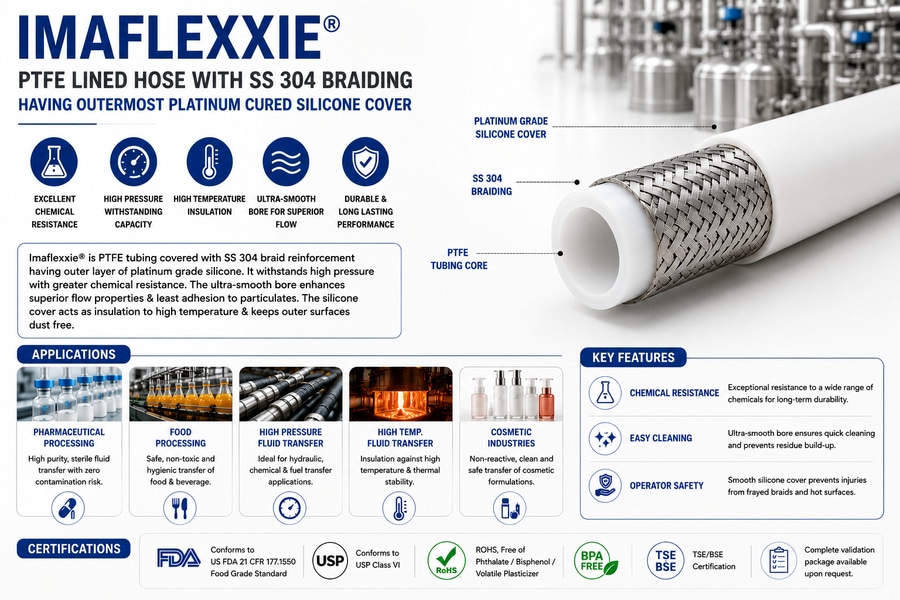

Imaflexxie" is PTFE tubing covered with SS 304 braid reinforcement having outer layer of platinum grade silicone. Imaflexxie is having capacity to withstand high pressure along with greater chemical resistance. The product is having ultra-smooth bore which enhances superior flow properties & least adhesion to particulates. The outer layer of silicone cover acts as insulation to high temperature & keeps outer surfaces dust free.

• PTFE Tubing Core: PTFE (Polytetrafluoroethylene) is known for its chemical resistance, low friction, and high thermal stability. This makes it ideal for conveying a variety of fluids, including those with harsh chemical properties.
• SS 304 Braid Reinforcement: The inclusion of stainless steel 304 (SS 304) braid provides mechanical strength, allowing the tubing to withstand high pressures and stresses. SS 304 is also highly resistant to corrosion, ensuring long-term durability in tough environments.
• Outer Platinum Grade Silicone Layer: The platinum-grade silicone covering offers insulation against high temperatures and provides a dust-free, protective barrier. This layer also enhances the flexibility and durability of the tubing, ensuring it can handle extreme conditions without degrading.
• Ultra-Smooth Bore: The smooth interior surface minimizes resistance to fluid flow and reduces the likelihood of particulates sticking to the walls. This feature is critical in applications that require consistent flow and cleanliness, such as in medical, pharmaceutical, or food-grade environments.
• High Pressure and Chemical Resistance: The combination of PTFE, SS 304 reinforcement, and platinum-grade silicone gives Imaflexxie exceptional capabilities to resist both high pressure and a broad range of chemicals, making it suitable for use in aggressive and high-demand applications.

APPLICATION -
1. Pharmaceutical Processing
• High Purity & Cleanliness: Imaflexxie’s ultra-smooth bore & chemical resistance make it ideal for conveying sensitive pharmaceutical fluids, such as active ingredients, solvents & drug formulations, while minimizing the risk of contamination.
• Durability in Sterile Environments: The platinum-grade silicone outer layer ensures that the tubing maintains its integrity in sterile processing environments, providing long-lasting performance in production lines, especially in critical cleanroom settings.
• Pressure and Temperature Resistance: Pharmaceutical processes often involve high-pressure and high-temperature conditions, making Imaflexxie’s reinforcement & heat resistance a perfect match for these demands.

2. Food Processing
• Non-Toxic & Safe: Imaflexxie’s materials, including the platinum-grade silicone and PTFE, meet stringent food safety standards, making it ideal for food and beverage processing applications where contamination risks must be minimized.
• Chemical Resistance: The tubing can handle various food-related chemicals, including cleaning agents, preservatives, and acids, ensuring the integrity of both the product and the system.
• Enhanced Flow Properties: The ultra-smooth bore reduces friction, which ensures consistent and efficient fluid transfer, crucial in food processing applications like juice, dairy, and other liquid food transport.

3. High Pressure Fluid Transfer
• High Pressure Handling: The SS 304 braid reinforcement allows Imaflexxie to withstand high pressures, making it suitable for applications such as hydraulic systems, fuel transfer, and chemical processing, where maintaining pressure integrity is crucial.
• Long-Term Performance: The tubing’s ability to maintain high-pressure resistance over time while offering flexibility ensures that it will perform reliably under extreme conditions.

4. High Temp. Fluid Transfer
• Temperature Insulation: The platinum-grade silicone outer layer provides insulation against high temperatures, protecting the tubing from thermal degradation and preventing heat loss or heat transfer to sensitive areas in the system.
• Thermal Stability: Imaflexxie can withstand elevated temperatures that are often found in high-temperature fluid transfer systems, such as those used in thermal processing or high-temp chemical applications, without compromising its mechanical or chemical properties.

5. Cosmetic Industries
• Non-Reactive Material: In cosmetic manufacturing, where products are often sensitive to chemical reactions, Imaflexxie’s PTFE core offers excellent chemical resistance to solvents, fragrances, oils, and other cosmetic ingredients.
• Clean Flow: The ultra-smooth bore helps minimize particulate buildup or contamination, ensuring that cosmetic products maintain their intended purity and performance.
• Safety and Hygiene: The platinum-grade silicone ensures the tubing maintains cleanliness, while also acting as a protective layer against contaminants, preserving the integrity of high-end cosmetic formulations.

CERTIFICATION -
E&L studies available on the inner liner.
Conforms to the US FDA 21 CFR 177.1550 Food Grade Standard
Conforms to USP Class VI
ROHS, free of phthalate / Bisphenol / Volatile Plasticizer, TSE/BSE Certification
Complete validation package available upon request.

KEY FEATURES –
• Chemical Resistance: Imaflexxie’s PTFE inner liner and SS 304 braid provide exceptional resistance to harsh chemicals, ensuring long-lasting durability and safe use in pharmaceutical, food, and industrial applications requiring chemical handling.
• Easy Cleaning: The ultra-smooth bore of Imaflexxie minimizes particulate buildup, making cleaning efficient and quick. This is particularly important in industries like food processing and pharmaceuticals where hygiene is critical.
• Operator Safety: The smooth silicone cover prevents injuries caused by frayed SS 304 braids, offering enhanced safety during handling of high-temperature materials. It helps avoid cuts or abrasions during installation or maintenance.
• Lot Traceability: Imaflexxie is fully traceable by batch, ensuring each unit's production history is documented. This feature supports regulatory compliance, quality assurance, and provides accountability for all applications in regulated industries.
• High Temperature Resistance: Imaflexxie can withstand temperatures up to 230°C, making it perfect for high-temperature fluid transfer, sterilization, and industrial applications where temperature extremes are encountered without compromising tubing integrity.
• SS316L Tri-Clover End: Available with SS316L Tri-Clover ends, Imaflexxie is compatible with sanitary systems. These high-quality fittings ensure secure, leak-free connections, ideal for industries requiring frequent cleaning or disassembly, like food and pharmaceuticals.
• Autoclave Sterilizable: Imaflexxie can be sterilized by autoclaving, maintaining hygiene and performance for repeated use in sterile environments. This feature makes it suitable for medical, pharmaceutical, and food industries requiring regular sterilization processes.

Part No. Catalogue Size Max Working Min Burst Min Bend Vacuum
Size (ID x OD) (in Inch) Pressure (Bar) Pressure (Bar) Radius (MM) Rating (MM HG)
0613FX 6 x 13 1/4" 20 60 80 NA
0916FX 9 x 16 11/32" 18 54 130 NA
1220FX 12 x 20 1/2" 15 45 170 NA
1624FX 16 x 24 5/8" 14 42 200 NA
1927FX 19 x 27 3/4" 12 36 220 NA
2535FX 25 x 35 1" 12 36 350 NA
3242FX 32 x 42 1.1/4" 10 30 400 NA
3747FX 37 x 47 1.1/2" 10 30 CP NA
5062FX 50 x 62 2" 8 24 CP NA

Why choose Ami Polymer for your PTFE Lined Hose with SS 304 Braiding and Platinum Cured Silicone Cover?

Ami Polymer is an ideal choice for PTFE Lined Hose with SS 304 Braiding and Platinum Cured Silicone Cover due to several key factors:

1. High-Quality Materials: Ami Polymer uses premium-grade PTFE, SS 304, and platinum-grade silicone, ensuring excellent chemical resistance, durability, and high-temperature stability, which are critical in demanding industrial applications.
2. Customization and Expertise: Ami Polymer provides tailored solutions to meet specific application needs, ensuring that the hoses are engineered for optimal performance in unique environments, such as pharmaceuticals, food processing, and high-pressure fluid transfer.
3. Regulatory Compliance: Ami Polymer’s products are compliant with critical industry standards like FDA, USP Class VI, and RoHS, ensuring they meet safety and quality requirements for sensitive applications.
4. Reliability and Durability: The combination of PTFE’s low friction, SS 304’s mechanical strength, and platinum-grade silicone’s insulation properties guarantees long-lasting, reliable performance, even in high-pressure, high-temperature, or chemically aggressive environments.
5. Proven Track Record: With a strong reputation in the industry for delivering high-performance materials, Ami Polymer offers a dependable product that ensures safe and efficient operation in various sectors, including pharmaceutical, food, and chemical industries.
