Reliable tension during grinding & round grinding

Information about the Neostar Magnetic Chucks

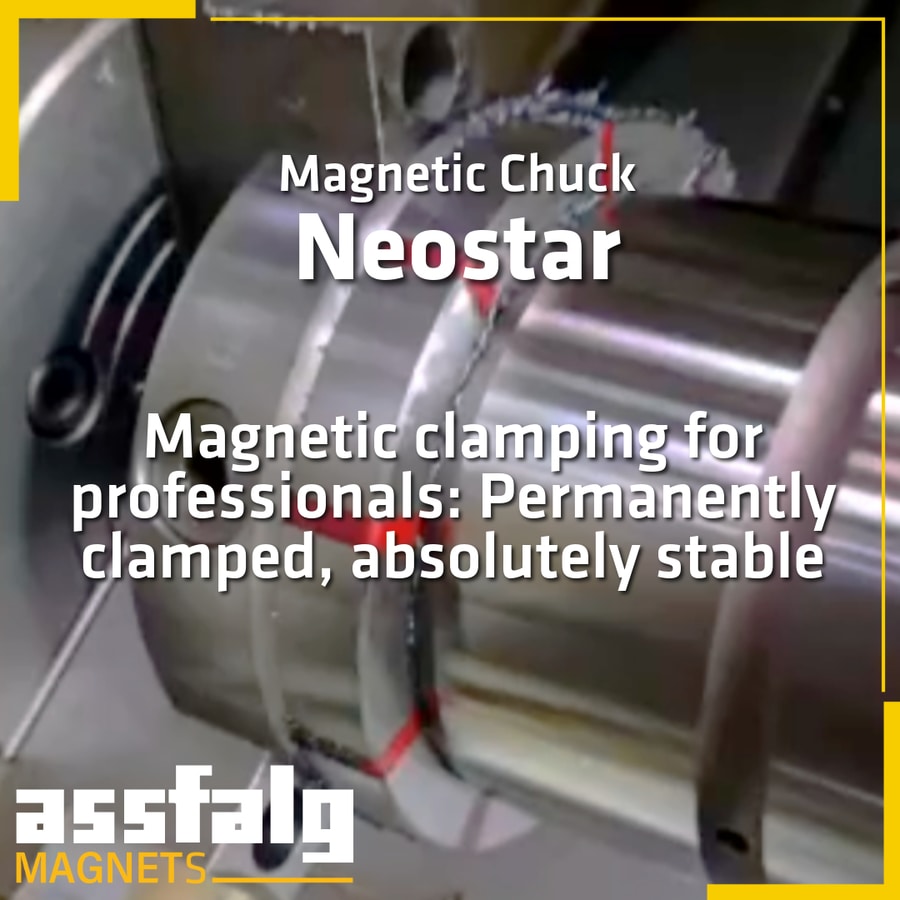

In the video, we show our permanently activated Neostar magnetic chuck in practical use: Our colleague from Pİ Kesici Takım demonstrates how sleeves, rings and discs can be quickly clamped, precisely aligned and reliably machined – both in cylindrical grinding and rotating.

Even with workpieces with through holes, the clamping force remains stable and reproducible. The uniform radial pole spacing ensures even force distribution and thus high stability and rigidity, especially with larger diameters.

Further advantages at a glance:
- Holding force appr. 140 N/cm² with low construction height
- 10 mm penetration depth of magnetic force
- Processing of adhesive surface up to max. depth of 8 mm
- Smooth switching ON/OFF via switch lever
- Liquid-tight – ideal for grinding processes

Which workpieces do you currently clamp magnetically – and where does your production reach its limits?

Contact us – we will help you find the optimal solution for your application – or visit our website for further product details.
