Large chamfers, precise results

Fewer compromises in your production with the A512

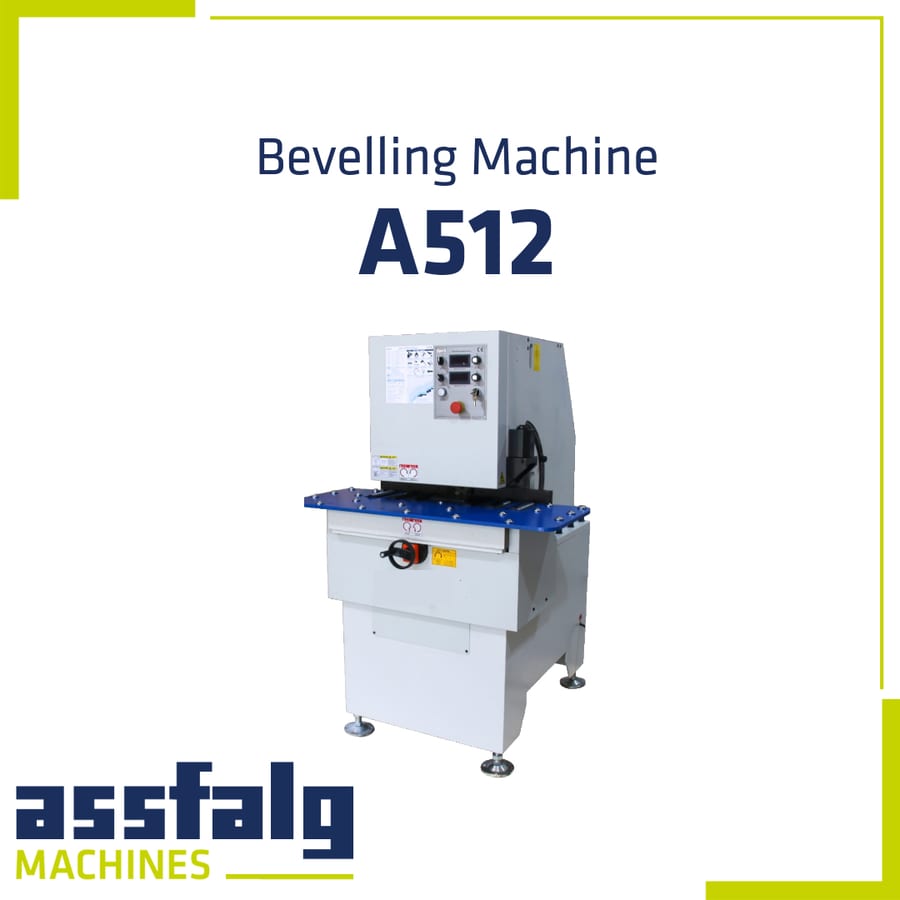

The precise edge processing of large chamfers presents a challenge for many manufacturing companies – particularly when dealing with different materials and high demands on process reliability and surface quality. We have developed our new A512 Bevelling Machine specifically for these applications.

All the technical details of the A512 at a glance:

▪ Chamfer width up to 70 mm
▪ Angle range from 10° to 75°
▪ Four driven double feed wheels
▪ Steel guide rollers & ball transfer tables for stable workpiece support
▪ Stepless feed & speed control
▪ Intuitive user interface

Thanks to the reinforced feed unit, the machine ensures consistent processing even with demanding materials. Whether steel, stainless steel, cast iron, aluminium alloys or copper – here you benefit from high machining performance and excellent tool life. In addition to medium-sized components, smaller workpieces from 100 × 300 mm can also be machined economically.

With its robust construction and wide range of applications, our new A512 sheet metal edge milling machine is particularly of interest to companies seeking to optimise their edge machining both technically and economically, minimise rework and ensure high process stability when producing large chamfers.
