A Comprehensive Guide of V Port Ball Valves

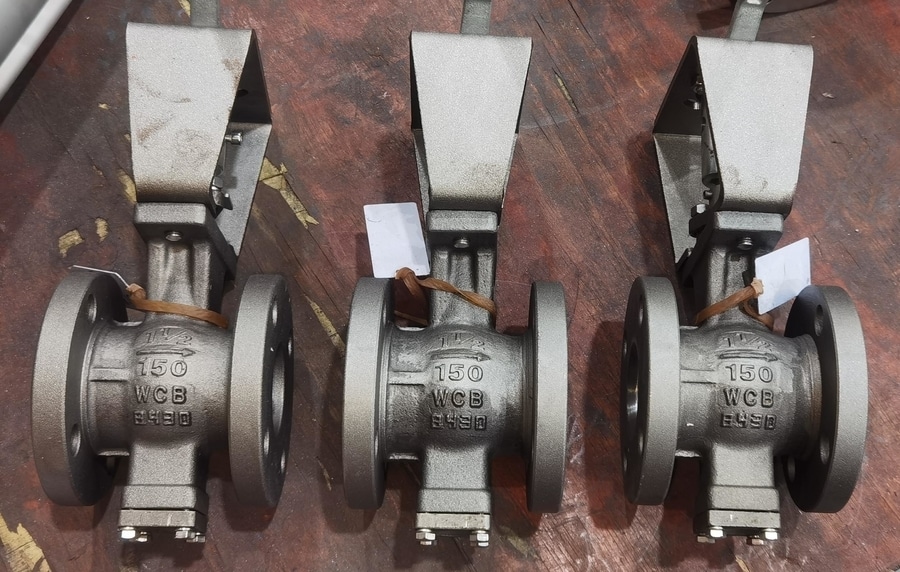

V Port Ball Valves

How V Port Ball Valves Work

At the core of a V Port Ball Valve is a spherical ball with a V - shaped notch or port. When the valve is in the closed position, the ball blocks the flow path, preventing the passage of fluid. As the ball is rotated, the V - port gradually aligns with the flow path, allowing fluid to pass through. The degree of rotation of the ball determines the amount of flow. A 90 - degree rotation typically moves the valve from a fully closed to a fully open position.
The V - shape of the port is the key to its exceptional performance. Unlike traditional ball valves with circular ports, the V - port provides a sharp - edged orifice. This sharp edge acts like a precision - cutting tool, enabling accurate throttling of the fluid flow. When the valve is partially open, the V - port creates a narrow passage for the fluid, which results in a linear flow characteristic. This means that a small change in the position of the ball leads to a proportional change in the flow rate, providing operators with fine - tuned control over the fluid movement.

Key Advantages of V Port Ball Valves

Precise Flow Control

One of the most significant advantages of V Port Ball Valves is their ability to offer precise flow control. This makes them ideal for applications where accurate regulation of fluid flow is crucial, such as in chemical dosing systems, where the correct amount of chemicals needs to be added to a process at specific intervals. The linear flow characteristic ensures that the flow rate can be adjusted with great accuracy, minimizing errors and ensuring consistent process results.

Excellent Shut - Off Capability

Despite their focus on flow control, V Port Ball Valves also provide excellent shut - off capabilities. When the ball is fully rotated to the closed position, the V - port aligns in such a way that it creates a tight seal, preventing any leakage. This is especially important in applications where fluid containment is essential, such as in the handling of hazardous materials or in systems where maintaining pressure integrity is critical.

High - Performance in Modulating Applications

V Port Ball Valves shine in modulating applications, where the flow rate needs to be continuously adjusted. Their ability to provide a smooth and stable flow, even at low flow rates, makes them a preferred choice. In HVAC systems, for example, these valves can be used to control the flow of water or refrigerant, ensuring optimal temperature and humidity control. The linear flow characteristic allows for seamless adjustment of the flow based on the changing demands of the system.

Resistance to Erosion and Wear

The sharp - edged V - port design of these valves also offers resistance to erosion and wear. In applications where the fluid contains particulate matter or has high velocities, the V - port can withstand the impact of the flowing medium better than traditional valve designs. The material used in the construction of the ball and the valve body, often high - grade alloys, further enhances this resistance, ensuring a long service life even in harsh operating conditions.

Applications of V Port Ball Valves

V Port Ball Valves find extensive use across various industries. In the oil and gas sector, they are employed in wellhead control systems, pipeline regulation, and refinery processes. Their ability to handle high pressures, temperatures, and abrasive fluids makes them suitable for extracting and transporting hydrocarbons. In chemical processing plants, these valves are used to control the flow of corrosive chemicals, ensuring safe and efficient production.
The water treatment industry also benefits greatly from V Port Ball Valves. They are used in processes such as water intake, filtration, and chemical dosing. The precise flow control capabilities of these valves help in optimizing the treatment processes, ensuring the production of clean and safe water. In power generation plants, V Port Ball Valves are used to control the flow of steam, cooling water, and other fluids, playing a vital role in the efficient operation of turbines and other equipment.

Athena Engineering S.R.L: A Trusted Name in V Port Ball Valves

Athena Engineering S.R.L, an esteemed Italian valve manufacturer under the brand Athena, has been at the forefront of developing high - quality V Port Ball Valves. Leveraging its years of expertise and innovation, the company produces valves that meet the highest industry standards. Athena's V Port Ball Valves are known for their superior performance, reliability, and durability. With a commitment to customer satisfaction, the company offers a wide range of these valves, along with excellent technical support and customized solutions to meet the diverse needs of its clients across the globe. For more information on Athena's V Port Ball Valves, reach out to sales team at [email protected].
