Machine Vision System Connectivity: A Comprehensive Analysis

Connectivity’s Role in Machine Vision Systems Across Industries

Connectivity’s Role in Machine Vision Systems Across Industries

In the rapidly evolving landscape of industrial automation, smart manufacturing, healthcare, and logistics, machine vision technology has become an indispensable tool. From quality inspection to production monitoring and beyond, machine vision systems play a critical role in enhancing efficiency, accuracy, and safety across various industries. However, the importance of connectors and cables is often overlooked amidst the focus on sophisticated cameras and advanced algorithms. These components are essential in maintaining system stability and ensuring high-performance data transmission. This article delves into the world of connectivity technologies in machine vision systems, exploring camera formats, and connection standards, and addressing challenges and solutions in practical industrial, medical, and logistics applications.

The Foundation of Machine Vision: Camera Formats and Interfaces

Machine vision systems rely on various camera formats and interfaces to capture and transmit high-quality image data. Understanding these formats is crucial for designing effective and efficient systems:

Area Scan Cameras: These cameras capture entire images in a single exposure, making them ideal for inspecting stationary objects or scenes. Common interfaces include:

GigE Vision: Offers long cable lengths and easy integration with Ethernet infrastructure.

USB3 Vision: Provides high bandwidth and plug-and-play convenience.

Camera Link: Delivers high data rates and low latency for demanding applications.

Line Scan Cameras: Used for inspecting continuous materials or objects in motion, these cameras capture one line of pixels at a time. Interfaces include:

CoaXPress: Supports high-speed data transmission over coaxial cables.

Camera Link HS: Offers scalable bandwidth for high-resolution line scan applications.

3D Cameras: These cameras capture depth information along with 2D images, enabling advanced inspection and measurement tasks. Interfaces may include:

GigE Vision: With recent extensions to support 3D data transmission.

USB3 Vision: Offering sufficient bandwidth for many 3D applications.

Smart Cameras: Integrated Real-Time Processing Smart cameras integrate image capture, processing, and analysis functions into a single device, capable of real-time image processing without relying on external computers. They are particularly suitable for real-time detection, classification, and quality control on production lines. Applications include:

Manufacturing: In-line quality control and defect detection.

Robotic vision: Guiding robotic arms for pick-and-place operations.

Automated inspection systems: Ensuring product quality and consistency.

Connectivity considerations:

Ethernet: For data output and system integration.

Digital I/O: For triggering and communicating with other industrial devices.

Thermal Cameras: Visualizing Heat for Safety: These cameras detect heat radiation and generate thermal images, finding applications in:

Industrial process monitoring: Detecting hotspots in machinery or electrical systems.

Equipment fault detection: Identifying overheating components before failure.

Safety inspections: Monitoring temperature in high-risk environments.

Connectivity considerations:

GigE Vision: For high-speed transmission of thermal data.

USB: For simpler, plug-and-play applications.

Analog video outputs: For compatibility with existing CCTV systems.

GigE Vision Cameras: High-Speed, Long-Distance: Leveraging Gigabit Ethernet technology, these cameras offer:

Transmission distances up to 100 meters.

Seamless integration with existing Ethernet infrastructure.

Real-time data transmission capabilities.

Key applications include:

Industrial automation: Production process monitoring and control.

Quality control: High-speed product inspection on assembly lines.

Robotic vision systems: Visual guidance for complex operations.

Connectivity advantages:

Extended cable lengths without signal degradation.

Power over Ethernet (PoE) support for simplified setups.

Standardized protocols ensuring cross-manufacturer compatibility.

The Role of Machine Vision Cameras Across Industries: Revolutionizing Retail, Warehousing, and Healthcare

In today's business environment, machine vision cameras play an increasingly important role, offering numerous advantages across various industries. Let's explore some prominent application areas highlighting their versatility and value.

Retail: Enhancing Efficiency and Customer Experience

Machine vision cameras are used in automated checkout systems, quickly scanning and identifying products without manual input, ensuring transaction accuracy and efficiency. They also monitor shelves and product displays, detecting empty spaces, misplaced items, or low inventory, triggering automatic alerts or reordering processes to maintain optimal product availability.

Warehousing and Distribution: Streamlining Operations

In warehouses and distribution centers, machine vision cameras are crucial for automated sorting systems. They capture images or read barcodes to identify and track packages, efficiently sorting and routing items to designated locations. Cameras also inspect incoming and outgoing goods, identifying damaged or defective items to ensure only high-quality products are shipped to customers, reducing returns or rework.

Healthcare: Advancing Diagnostics and Automation

Machine vision cameras are used in medical imaging systems like X-rays, ultrasounds, or endoscopic examinations, capturing detailed images of the human body to aid in diagnosis, surgical procedures, and treatment planning. They also play a vital role in laboratory automation, assisting with sample identification, classification, and analysis, improving the efficiency and accuracy of laboratory processes.

Manufacturing: Ensuring Quality and Precision

Widely used for quality inspection in manufacturing, machine vision cameras detect defects in the production process, measure dimensions, and identify product inconsistencies. This ensures adherence to quality standards, reduces waste or rework, and enhances overall product quality. Cameras also provide visual feedback for vision-guided robotics (VGR), enabling precise positioning, manipulation, or assembly of components, helping robots perform complex tasks accurately and efficiently.

Transportation and Logistics: Optimizing Parcel Handling

Machine vision cameras are applied in automated parcel sorting systems at transportation and logistics facilities. By reading barcodes, capturing images, or extracting information from shipping labels, they accurately sort packages and route them to the correct destinations. Camera technology is also used in vehicle inspection, such as automatic license plate recognition or identifying container numbers on trucks, ensuring fleet safety, compliance, and efficient management.

Latest Trends in Machine Vision Camera Technology: Staying Ahead of the Curve

Machine vision technology continues to evolve. Here are some of the current major technological trends:

High-Speed Camera Technology

With continually increasing frame rates, some high-speed cameras now achieve tens of thousands of frames per second, suitable for inspections on high-speed production lines like semiconductor chip manufacturing.

Embedded Vision Systems

Integrating image processing capabilities directly into cameras reduces dependence on external computing resources and improves system response time.

Multispectral Imaging

This technology goes beyond the traditional RGB range, capturing a wider spectrum of light information. It's widely applied in agriculture, food safety, and material analysis.

Artificial Intelligence Integration

Cameras with built-in AI processing chips enable edge computing, performing complex tasks like real-time object recognition and defect detection.

New Sensor Technologies

Event cameras (neuromorphic cameras) only output data when pixel brightness changes, suitable for high dynamic range scenes, significantly reducing data volume.

Light Field Cameras

These cameras capture information about the direction and intensity of light, allowing post-capture focusing and depth estimation, suitable for 3D reconstruction and virtual reality applications.

Why Connectors and Cables Matter: The Impact of Connectivity on Machine Vision Systems

The choice of connectors and cables is crucial to the performance and stability of machine vision systems. Here are key considerations:

Signal Integrity: Ensuring Undistorted Data

High-quality connectors and cables are essential for undistorted signals during high-speed image transmission. In applications requiring high data transmission speeds—like 3D cameras, hyperspectral cameras, and smart cameras—using high-performance connectors such as USB 3.0, GigE, or CoaXPress effectively prevents signal loss.

Interference Resistance: Stability in Harsh Environments

Industrial settings often have significant electromagnetic interference (EMI). Choosing cables and connectors with excellent shielding ensures stable image transmission and prevents data interference during transmission.

Durability and Flexibility: Extending System Lifespan

Cable cables must withstand repeated bending and stretching in applications like robotic arm-camera systems. Selecting industrial-grade cables with high flexibility and wear resistance extends the system lifespan and ensures long-term stable operation.

Connectivity Standards in Machine Vision: Which is Right for Your Application?

Multiple connector and cable standards are available, each with unique advantages and suitable applications.

USB3 Vision

Features: Based on USB 3.0 interface, supports up to 5 Gbps transmission rate.

Advantages: Wide compatibility, plug-and-play.

Considerations: Cable length is usually limited to under 5 meters.

GigE Vision

Features: Based on Gigabit Ethernet, supports long-distance transmission up to 100 meters.

Advantages: Cost-effective, easy network integration.

Considerations: Higher CPU load.

Camera Link

Features: Designed specifically for machine vision, supports a high bandwidth of up to 6.8 Gbps.

Advantages: Low latency, and excellent real-time performance.

Considerations: Requires dedicated frame grabbers, higher cost.

CoaXPress (CXP)

Features: Uses coaxial cables, and supports high-speed transmission (CXP-12 reaches 12.5 Gbps per connection).

Advantages: Strong long-distance transmission over 100 meters.

Considerations: Requires specialized hardware, higher initial cost.

MIPI CSI-2

Features: Used in embedded systems and mobile devices.

Advantages: Low power consumption, suitable for battery-powered devices.

Considerations: Short transmission distances, primarily for board-level connections.

Overcoming Practical Connectivity Challenges: Solutions for Real-World Applications

Machine vision systems face various connectivity challenges. Here's how to address them:

High-Speed Data Transmission

Challenge: High-resolution cameras generate large data volumes, increasing the need for high-speed transmission.

Solution: To ensure rapid image data transfer, opt for connectors supporting high bandwidth, like USB 3.1 Gen 2 or 10G Ethernet.

Long-Distance Applications

Challenge: Some industrial environments require long-distance image data transmission.

Solution: Use fiber optic connectors and cables to prevent signal attenuation over long distances, ensuring data integrity.

Harsh Environmental Conditions: Industrial settings may involve temperature fluctuations, vibration, and chemical exposure.

Temperature Fluctuations: Choose industrial-grade connectors and cables with wide temperature ranges.

Vibration and Shock: Employ connectors with locking mechanisms, like M12 connectors, to prevent loosening or damage.

Chemical Corrosion: Select materials resistant to corrosion, such as stainless steel or those with protective coatings.

Best Practices for System Integration and Maintenance: Ensuring Long-Term Stability

Implementing best practices ensures the long-term stable operation of machine vision systems.

Optimize System Integration

Plan Cable Layouts Carefully: Avoid routing signal cables parallel to power cables to reduce interference.

Use Cable Management Systems: Keep cables organized for easier maintenance and inspection.

Ensure Connector Accessibility: Place connectors in accessible locations during the design phase.

Troubleshoot Common Issues

Signal Loss or Instability: Check for loose connectors or damaged cables.

Image Quality Degradation: Verify shielding to address potential EMI interference.

Performance Decline: Replace aging cables or oxidized connectors as needed.

Regular Preventive Maintenance

Scheduled Inspections: Regularly check connector tightness, especially in high-vibration environments.

Test Cable Integrity: Use professional tools to detect potential problems early.

Implement Strain Relief: Use strain relief devices in high-stress areas to extend cable life.

Enhance Your Machine Vision System Today

Selecting the right connectors and cables is crucial to unlocking your machine vision system's full potential. As technology advances, staying informed about the latest connectivity solutions positions your operations for greater efficiency, reliability, and success. Don't let subpar connectivity hold back your system's performance—invest in quality components and proactive maintenance to ensure your machine vision applications run smoothly and effectively.

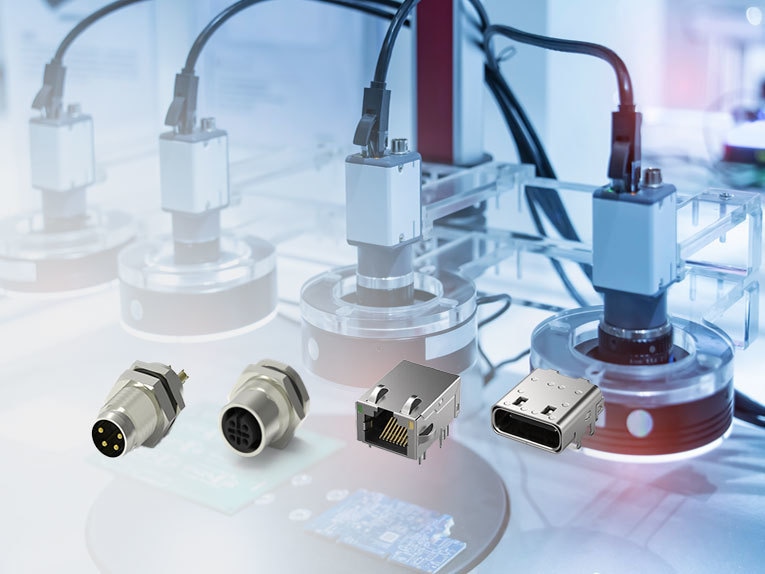

Recommended Connectivity Products for Machine Vision Systems

To support the various connectivity needs in machine vision applications, here are some recommended product lines that cater to different interface standards and environmental requirements:

RJ45 with PoE++ (Power over Ethernet)

PoE++ technology allows for power delivery up to 90W through Ethernet cables, making it ideal for high-power devices in machine vision systems.

ATTEND RJ45 Connector Series

Features ruggedized designs for industrial environments

Supports various PoE standards including PoE++

Available in shielded and unshielded versions for different EMI requirements

USB 3.1 Type-C connectors offer high-speed data transfer rates up to 10 Gbps, making them suitable for high-resolution camera interfaces.

ATTEND USB Type-C Connector Series

Supports USB 3.1 Gen 2 speeds

Available in various mounting styles for different PCB designs

Some models feature waterproof designs for harsh environments

M.2 connectors play a crucial role in machine vision systems by enabling the integration of Wi-Fi modules, which are essential for wireless connectivity in modern industrial environments.

ATTEND M.2 (NGFF) Connector Series

Supports Key E configuration, specifically designed for Wi-Fi and Bluetooth modules

Available in different sizes to accommodate various M.2 Wi-Fi module lengths (2230, 2242, 2260, 2280)

Ensures reliable connections for stable wireless communication in industrial settings

Enables easy integration and upgradability of wireless capabilities in machine vision systems

FAKRA Connectors

FAKRA connectors are widely used in automotive vision systems for their robust design and color-coding system.

ATTEND FAKRA Connector & Cable Assemblies

Meets USCAR-17 requirements for automotive applications

Available in various colors for easy identification of different systems

Provides excellent RF performance up to 6 GHz

M8/M12 Connectors

M8 and M12 connectors are favored in industrial machine vision applications for their rugged design and resistance to environmental factors

M8-M12-Connector-Series

ATTEND M8/M12 Connector Series & Cable Assemblies

IP67 rated for protection against dust and water ingress

Available in various pole configurations to suit different signal requirements

Supports protocols such as Ethernet and PROFINET for industrial networking

These connector solutions from ATTEND offer high reliability and performance for various machine vision applications, from industrial automation to automotive systems. When selecting connectors for your specific machine vision project, consider factors such as data transmission speed, power requirements, environmental conditions, and system integration needs.
