Advanced magnetic measurement systems: Compact. Robust. Accurate.

BOGEN’s absolute magnetic scales are designed for industrial applications requiring accurate and reliable position detection, even in harsh environments.

BOGEN’s absolute magnetic scales are designed for industrial applications requiring accurate and reliable position detection, even in harsh environments. Available in standard or customer-specific versions, they support both absolute and incremental measurement - ideal for robotics, semiconductor systems, CNC machines, and more.

Key features:
• Absolute and incremental measurement
• Multi-track scales: absolute + incremental or reference
• Standard code patterns: PRC (up to 32.7 m) and Nonius (up to 256 mm / several meters)
• Compact designs for space-constrained applications
• Custom lengths, widths, pole patterns, and mounting options
• High resistance to dust, oil, and temperature changes

Sensor compatibility:

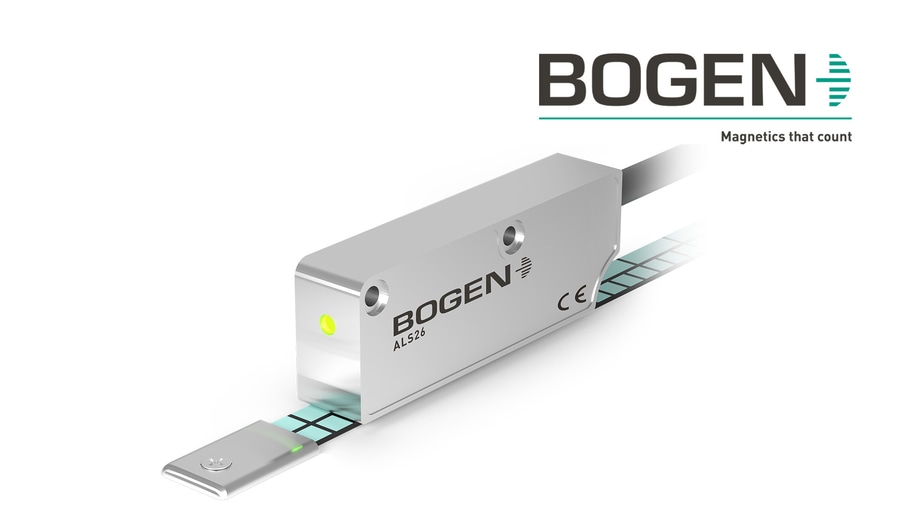

• ALS21, ALS26
• AKS16, AKS17


Paired with BOGEN sensors, these scales form a robust, cost-effective alternative to optical systems. Talk to our engineers about how BOGEN magnetic scales can transform your accuracy and reliability. Contact us at [email protected] to know more.
