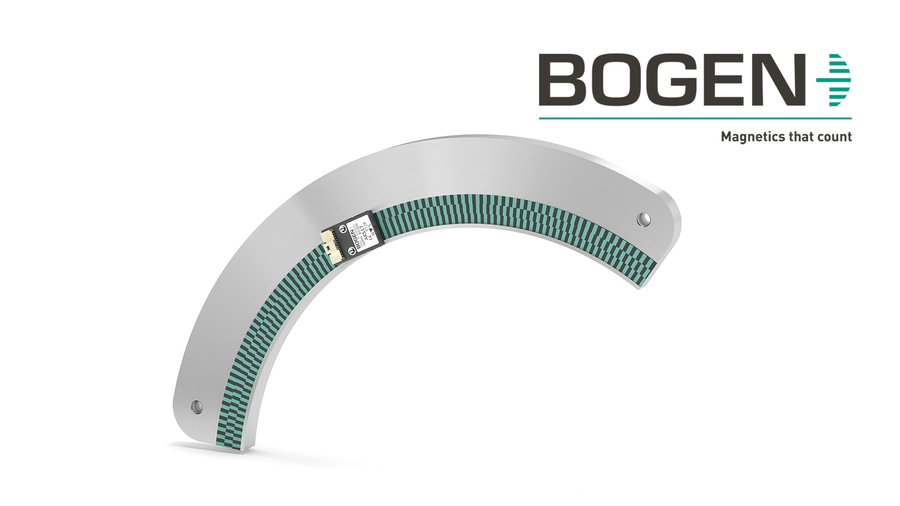

Custom Rotary Segments

Tailored Magnetic Precision

When standard rotary scale solutions do not meet your application requirements, BOGEN provides fully customizable rotary segments specifically designed to satisfy your precise mechanical and magnetic specifications. This ensures optimal performance without compromise, regardless of the complexity or industry involved.

Key features:
• Magnetic patterns: Pseudo-random code, Nonius, Incremental track, Inc. + Index track, Multiple tracks up to 9, Special code patterns tailored to your system
• Flexible mechanical design: With or without hub; Hub materials: steel, aluminum, or sheet metal
• Magnet materials: Hard ferrite, Elastomer-bonded ferrite, Vulcanized or plastoferrite – based on your application and environmental requirements
• High accuracy: Minimum ±25 arcseconds, depending on the outer diameter
• Wide operating temperature range: From -40 °C to +250 °C (–40 °F to +482 °F), depending on magnet type
The magnet layer can be mounted on an existing part in your device to get a more compact and lighter design. No additional part avoids the need for concentrical assembly, higher accuracy, and lower cost.

Whether you need a full ring or a segment, BOGEN’s engineering team ensures a solution without design limitations – completely tailored to your application.
