Formaldehyde (HCHO) monitoring

Formaldehyde (HCHO) monitoring has become a top priority

In the context of increasingly stringent air quality regulations and growing awareness of indoor pollutants, formaldehyde (HCHO) monitoring has become a top priority. At CHROMATOTEC, we don’t just measure formaldehyde — we generate, quantify and validate it with patented precision.

Reliable Formaldehyde Generation with Paraformaldehyde Tubes

CHROMATOTEC has engineered a compact permeation-based calibration system using paraformaldehyde. Advantages over cylinder-based standards:

- Wide and controlled concentration range (ppb to ppm level);
- Predictable output thanks to a temperature-emission relationship modelled by the Antoine equation;
- Stable output over 1 year with RSD ~5%;
- Fast stabilization (few minutes) for on-site usability;
- Certified by DNPH-HPLC (ISO 16000-3) for higher reliability than weight-based certification.

This calibration module is now integrable into our formaldehyde analyzers, enhancing autonomous, in-situ calibration capabilities.

Measurement with Chromatotec® products:

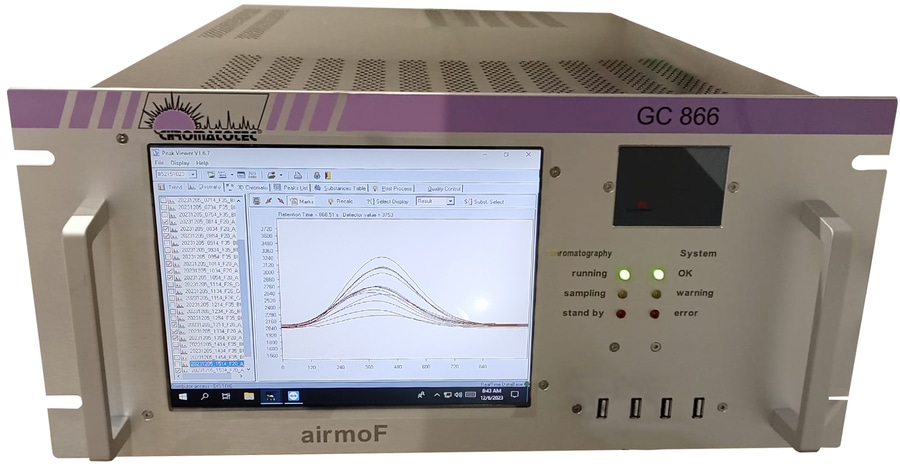

The airmoF microfluidic device for formaldehyde is dedicated to on-line monitoring based on the Hantzsch reaction. Designed for ultra-trace detection and field robustness, it delivers:

- High sensitivity with detection < 0.1 ppb;
- Auto-zero at every cycle to eliminate drift;
- No influence of humidity (tested up to 50% RH);
- Excellent linearity (R² > 0.99);
- Internal HCHO module calibration.

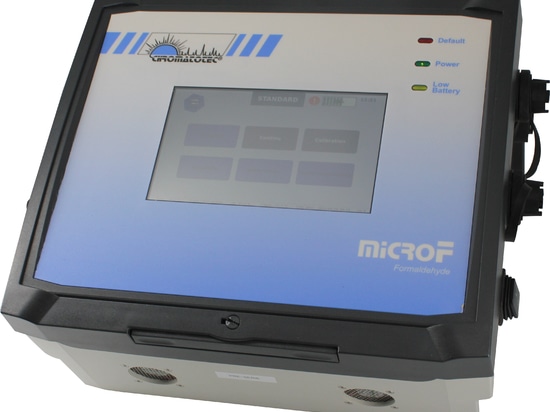

When mobility and responsiveness matter, the microF offers reliable continuous formaldehyde monitoring in a compact portable format. Dedicated to field campaigns with 4-hour autonomy on battery.

- High sensitivity < 0.3 ppb;
- Real-time or cycle-time analysis;
- Suitable for indoor air monitoring, IAS audits, emergency response;
- Lightweight and low maintenance;
- No gas required.
