Cubic NDIR R1234yf Refrigerant Leak Sensing Solution For Cold Chain Industry

Enabling Reliable R1234yf Refrigerant Leak Detection For Cold Chain Refrigeration System

In cold chain transportation systems, the stability of the refrigeration system directly determines temperature control quality and cargo safety, which is especially critical in high-value scenarios such as pharmaceuticals, fresh food, and advanced chemicals, where any temperature fluctuation may lead to irreversible losses. As a core working medium in refrigeration systems, the performance of refrigerant directly affects cooling efficiency and system reliability. Currently, R1234yf, a low-GWP refrigerant, is now widely adopted in cold chain transport refrigeration units, vehicle-mounted refrigeration systems, and mobile cold storage equipment and is gradually replacing conventional R134a under the continuous accelerated phase-down of high-GWP refrigerants.

1. Why R1234yf Refrigerant Leak Detection Is Important?

While R1234yf offers clear environmental benefits, it also introduces new safety challenges. As an A2L flammable refrigerant, the 1234yf refrigerant poses a combustion risk under certain leak concentrations and ignition conditions, which is particularly significant in enclosed or semi-enclosed cold chain environments, such as refrigerated truck compartments, container refrigeration units, or continuously operating mobile cooling systems. In the event of a leak, not only will cooling efficiency decrease and energy consumption increase, but localized accumulation of flammable gas may also create potential safety hazards.

From an operational perspective, cold chain transport systems typically operate under high vibration and long-duration continuous running conditions. Refrigerant pipelines and joints are constantly subjected to thermal expansion, contraction, and mechanical stress, making them prone to micro-leak formation over time. Meanwhile, R1234yf has a relatively low molecular weight and fast diffusion rate, making it difficult to detect through human perception, which further increases the difficulty of identifying leaks at an early stage. Without effective monitoring methods, leaks are often only discovered when system performance has significantly degraded or a shutdown failure occurs, by which time energy waste and potential cargo damage have already occurred.

Therefore, introducing high-sensitivity R1234yf leakage detection sensors into cold chain transportation scenarios is clearly necessary, mainly in the following aspects:

Safety Compliance
The R1234yf should be regulated by international safety standards, including IEC 60335-2-40 and UL 60335-2-40. Both standards set stricter requirements for refrigerant gas leak detection in refrigeration equipment filled with A2L refrigerant. Continuous monitoring of refrigerant concentration through gas sensors enables early-stage warning of leaks, thereby meeting regulatory risk control requirements.

Transport Quality
The essence of cold chain logistics is the control of constant temperature, while refrigerant leakage directly weakens cooling capacity and causes temperature fluctuations inside the cargo space. In pharmaceutical cold chain applications, even short-term temperature deviations may affect drug efficacy; in fresh food transport, they may accelerate spoilage. Early detection of anomalies through leak sensors provides timely maintenance, preventing further cargo loss.

To ensure both regulatory compliance and transport quality, R1234yf leak detection sensors for cold chain transportation must meet multiple requirements

• High sensitivity and a low detection limit, capable of identifying early-stage leaks
• Strong anti-interference capability, ensuring stable operation under low temperature, high humidity, vibration, and electromagnetic interference conditions
• Fast response speed, enabling effective signal output at the initial stage of concentration chang
• Long-term stability, reducing maintenance costs caused by frequent calibration
• Miniaturization and easy integration, suitable for existing refrigeration system architectures and vehicle space constraints.

2. Cubic Reliable NDIR R1234yf Refrigerant Sensing Solution Designed for Cold Chain Application

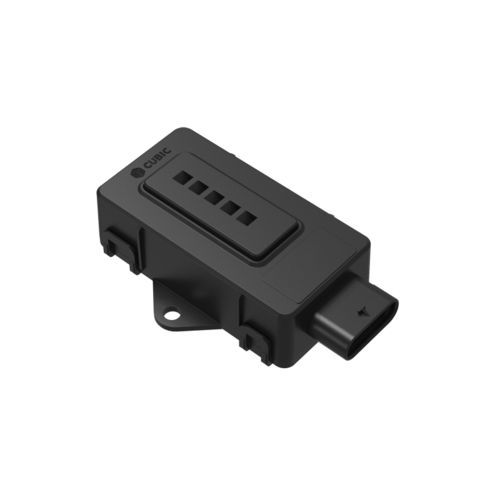

As a leading manufacturer of gas sensor and gas analyzers, Cubic has leveraged its mature NDIR technology platform to developed an advanced R1234yf refrigerant gas sensor, AM4207 Series, for in-time R1234yf detection in cold chain applications.

Based on mature NDIR technology, the sensor provides good selectivity for R1234yf while maintaining strong resistance to interference from other gases, especially CO2, which makes it suitable for environments where CO2 levels may fluctuate significantly, such as fruit and vegetable cold chain transportation.

The sensor features fast response, enabling early detection of refrigerant leakage. It is designed for long lifespan and stable operation, making it suitable for continuous adoption in cold chain equipment. In terms of environmental adaptability, the sensor integrates an automatic heating function to reduce the impact of condensation in low-temperature and high-humidity conditions, ensuring stable operation over time. It also includes a built-in reference channel and self-compensation mechanism, which help reduce drift caused by optical aging and environmental changes, which improves long-term measurement stability and reduces the need for frequent calibration. The compact design allows for easy integration into refrigeration systems where installation space is limited. Complies with IEC 60335-2-40 (7th edition) and UL 60335-2-40 (4th edition) standards, the sensor is intended to support refrigeration equipment to meet international safety requirements.

Against the backdrop of increasingly stringent global regulations and the rapid growth of the cold chain industry, Cubic NDIR R1234yf refrigerant sensor, achieves accurate and long-term stable detection of refrigerant concentration under complex operating conditions, effectively supporting early leakage warning and system safety control, delivering a reliable leakage monitoring solution for cold chain application.

For more product information, please click on https://en.gassensor.com.cn/RefrigerantGasLeakageMonitoringSensor/list.html or contact: [email protected].
