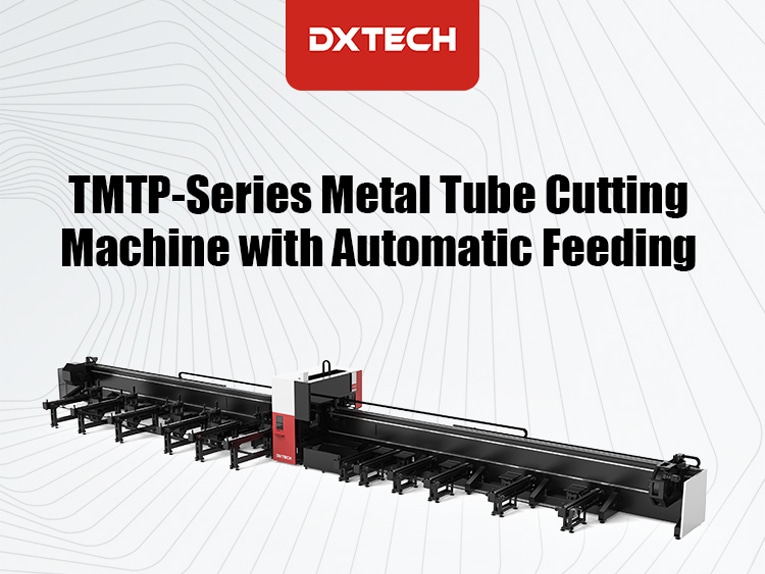

Three-chuck Heavy-duty Tube Laser Cutting Machine

Three-chuck Heavy-duty Tube Laser Cutting Machine

This TMTP bevel tube laser cutting machine is designed for high-volume tube cutting and is much more efficient than ordinary laser systems when cutting tubes and tubular metals. Tubes and rectangular tubes can be fed fully automatically without manual operation. Special-shaped tubes can be fed manually and semi-automatically. Fast corner response greatly improves cutting efficiency. After cutting, the workpiece can be automatically unloaded in different areas.


Three full-stroke chucks can correct tube deformation to make cutting precision high and detect tube position in real time. Due to 7-axis linkage, zero tailing is made possible to maximize material utilization.

The servo-controlled devices may adjust tube support height and make tube and chucks center coaxial according to tube size. No impact on machine body while cutting heavy tubes.

With optimal algorithms, this automatic nesting software can nest tubes as much as possible. Users are entitled to change cutting order and optimize cutting path to reduce waste and maximize tube utilization.

Its triangular structure is featured by high stability, large load capacity and good vibration reducing performance after going through fine welding, annealing stress relief, secondary aging treatment and precision finishing.

With right-angled cutting head, swing angle will be accurately controlled and gas flow output is monitored in real time. In doing so, the gas flow can center on metal surface to make cutting section better.
