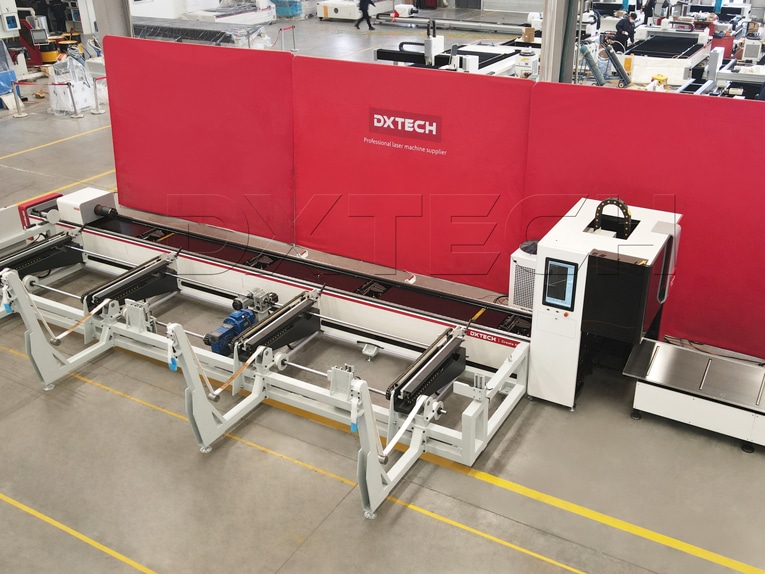

Semi Automatic Feeding Fiber Laser Metal Tube Cutting Machine

Semi Automatic Feeding Fiber Laser Metal Tube Cutting Machine

Heavy-duty mechanical structure
The AC servo motor drive is controlled by the numerical control system, and the chuck realizes reciprocating motion in the Y direction after the motor drives, realizing rapid movement and feeding motion. Both the Y-axis rack and linear guide rail are made of high-precision products, which effectively guarantee the accuracy of the transmission; the limit switches at both ends of the stroke are controlled, and a hard limit device is installed at the same time, which effectively ensures the safety of the machine tool movement; the machine tool is equipped with The automatic lubricating device adds lubricating oil to the moving parts of the bed at regular intervals to ensure that the moving parts run in good condition, which can improve the service life of guide rails, gears and racks.


Front-Feeding-Device
The front feeding device includes a support plate controlled by an air cylinder, which supports the pipe when the cut pipe is long and prevents it from sagging.
When the workpiece is being cut, the raised support cylinder supports the support plate to support the pipe and prevents it from sagging. When the workpiece is cut, the raised support cylinders are all retracted, and the workpiece falls to the blanking plate and slides to the storage place. The cylinder action is automatically controlled by the system.
The front section is also divided into follow-up type and manual adjustment type.



Chuck-Part
The chuck is divided into front and rear two pneumatic full-stroke chucks, both of which can move in the Y direction. The rear chuck is responsible for clamping and feeding the pipe, and the front chuck is installed at the end of the bed for clamping materials. The front and rear chucks are respectively driven by servo motors to achieve synchronous rotation.

Under the joint clamping of double chucks, short tail cutting can be realized, and the short tail of the mouth can reach 20-40mm, while supporting the short tail cutting of longer tail.


Application ：
The metal tube laser cutting machine is dedicated to cutting various metal tubes and pipes in round, square, rectangular, and elliptical shapes. In addition, it can also cut L-, H-, U-shaped steel bars and cut complex patterns out from these tubes and pipes. The metal tube laser cutting machine is widely used in decoration, furniture, automotive parts, construction, artworks, and other industries
