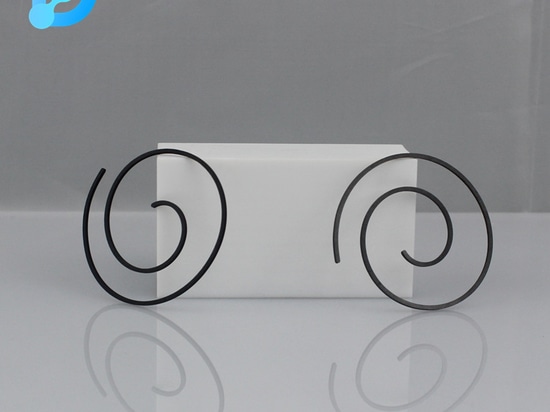

PTFE Tip Seals in Scroll Compressors: Materials, Design Evolution and Industry Solutions

A technical overview of materials and sealing performance

Scroll compressors are widely used in automotive air conditioning systems, heat pumps, and oil-free industrial equipment. One of the key components affecting efficiency and durability is the tip seal, which helps prevent gas leakage between compression chambers.

PTFE-based materials are commonly used for tip seals due to their low friction, chemical resistance, and stable performance under dry or low-lubrication conditions. However, material selection must balance wear resistance, stiffness, and manufacturability depending on application requirements.

In practical engineering, PTFE is often used in applications requiring excellent abrasion resistance and low friction behavior. PPS materials, on the other hand, provide higher stiffness and better dimensional stability, making them suitable for automated assembly and larger compressor systems. Filled PTFE compounds are also widely used to further improve wear resistance and mechanical performance.

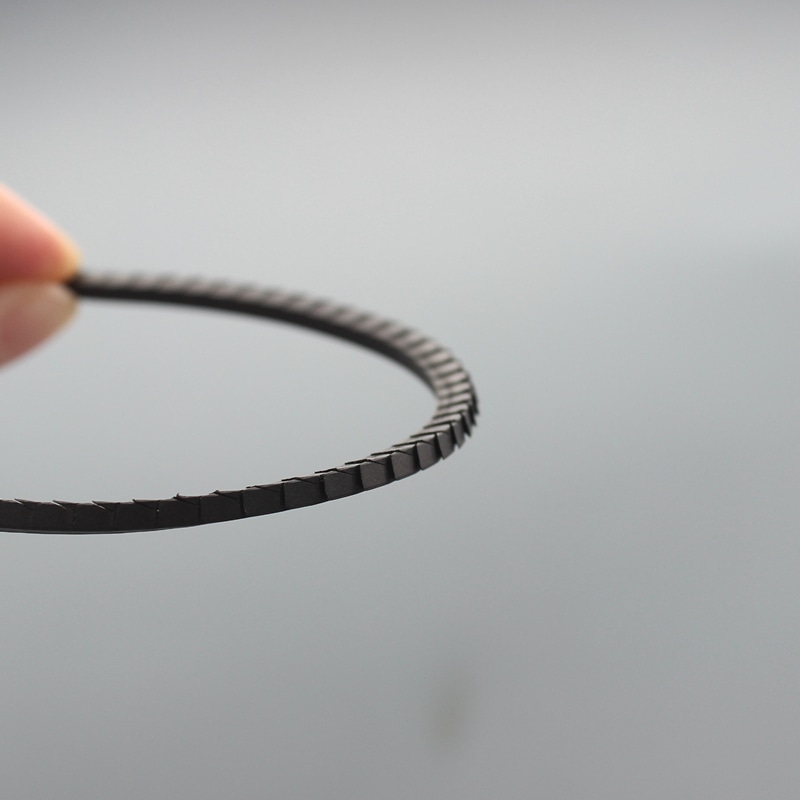

Tip seal designs can generally be divided into non-slotted and slotted structures. Non-slotted rectangular designs are commonly used in automotive scroll compressors, where stable operating conditions and cost efficiency are key priorities. Slotted or structured designs are more frequently applied in oil-free industrial scroll compressors and dry vacuum pumps, where higher loads and thermal stress require improved sealing performance and wear control.

Key selection factors for PTFE tip seals include operating temperature, pressure conditions, wear resistance requirements, and service life expectations. In many cases, performance optimization depends not only on material selection but also on structural design and manufacturing precision.

Modern sealing solutions continue to evolve toward higher efficiency, improved durability, and better adaptability to demanding operating environments in both automotive and industrial applications.
