When reliability matters: The advantages of ceramic pressure sensors
Pressure measurement without compromising process integrity
Pressure measurement is often taken for granted in industrial applications. But what happens when an unexpected pressure spike damages the sensor diaphragm? The consequences can range from inaccurate measurements to contamination of the process medium. In industries where safety, cleanliness, and reliability are critical, such failures can have significant implications.
As a result, device manufacturers increasingly need to ensure not only accurate measurements but also the protection of their processes and products. This is where capacitive ceramic pressure sensing technology can demonstrate its strengths and provide additional confidence in critical applications.
Pressure measurement without compromising process integrity
Many conventional pressure sensors use an oil-filled measuring cell. This proven technology has been successfully deployed in a wide range of applications for decades.
However, if the diaphragm is damaged, there is a possibility that the fill fluid could come into contact with the process medium. In applications such as water treatment, medical devices, laboratory equipment, or other sensitive process environments, this may present an unwanted risk. Product purity, process integrity, and regulatory compliance are therefore becoming increasingly important factors when selecting pressure sensing technology.

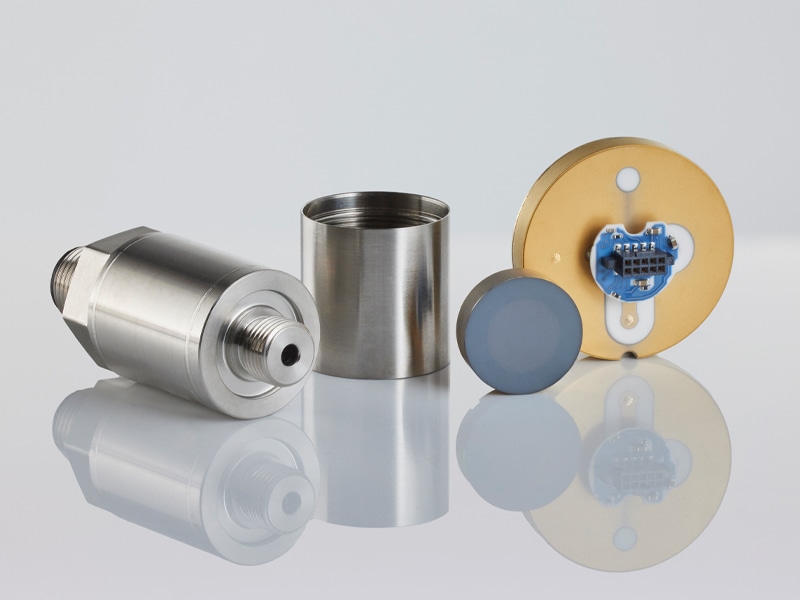

Capacitive ceramic pressure sensors take a different approach. They operate entirely without fill fluids. The ceramic sensing element measures pressure directly. Electrodes integrated onto the diaphragm and ceramic substrate form a capacitor whose capacitance changes in response to the applied pressure. As a result, the risk of contamination from fill fluids is eliminated.
Why ceramic performs in challenging media
In addition to its oil-free design, the sensing material itself offers significant advantages. Ceracore measuring cells from Endress+Hauser are manufactured from high-purity ceramic containing 99.9% aluminum oxide (Al₂O₃). This material provides excellent resistance to many aggressive and corrosive media.
While metallic diaphragms may reach their limits in certain applications, ceramic diaphragms help maintain stable measurement performance even under demanding process conditions. Their exceptional dimensional stability also contributes to maintaining measurement accuracy over many years of operation.
Whether exposed to wastewater, chemical processes, or challenging industrial media, ceramic material properties help increase the long-term reliability of pressure measurement systems while reducing maintenance requirements.
Robust sensor technology for the next generation of devices
The demands placed on modern pressure sensors continue to evolve. Device manufacturers now expect far more than accurate measurement data. Factors such as process safety, media compatibility, long-term stability, and resistance to pressure overload have become key selection criteria.
Capacitive ceramic pressure sensors address these requirements through their oil-free measurement principle, high chemical resistance, and robust design. This makes them particularly well suited for applications where reliability and process integrity are top priorities.
Choosing the right pressure sensing technology
Selecting a pressure sensor starts with understanding the measurement technology behind it. In applications with stringent requirements for product safety, aggressive media resistance, or long-term stability, ceramic pressure sensors can offer significant advantages.

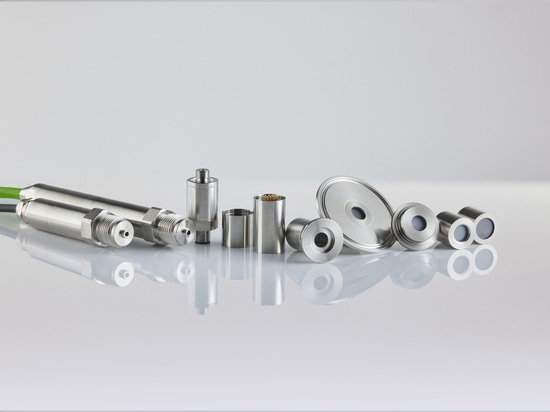

With Ceracore measuring cells, Endress+Hauser Sensors & Components provides a proven sensing technology specifically designed for accurate and reliable pressure measurement in demanding environments. Manufacturers looking to future-proof their devices should consider the benefits of ceramic pressure sensing technology early in the design process.
Discover how Ceracore measuring cells can enhance the reliability of your application and learn more about the benefits of oil-free pressure measurement by exploring Ceracore portfolio.
