Fully Automated Testing System for Sheet Metal Tests

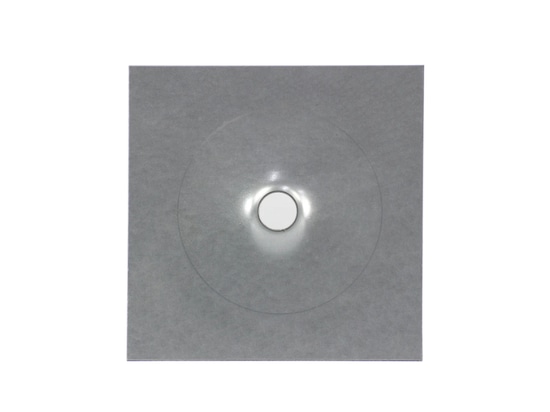

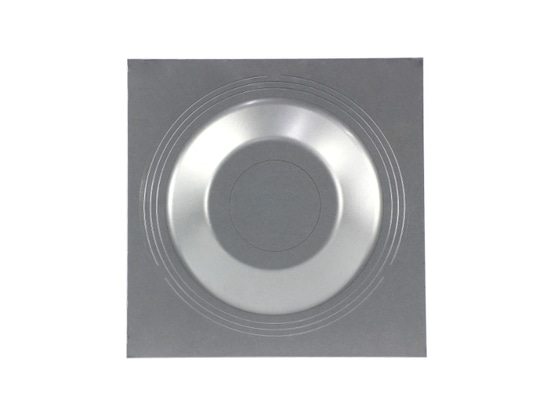

From sample collection to data evaluation: Fully automated hole expansion tests according to ISO 16630 & waviness tests according to PV1054.

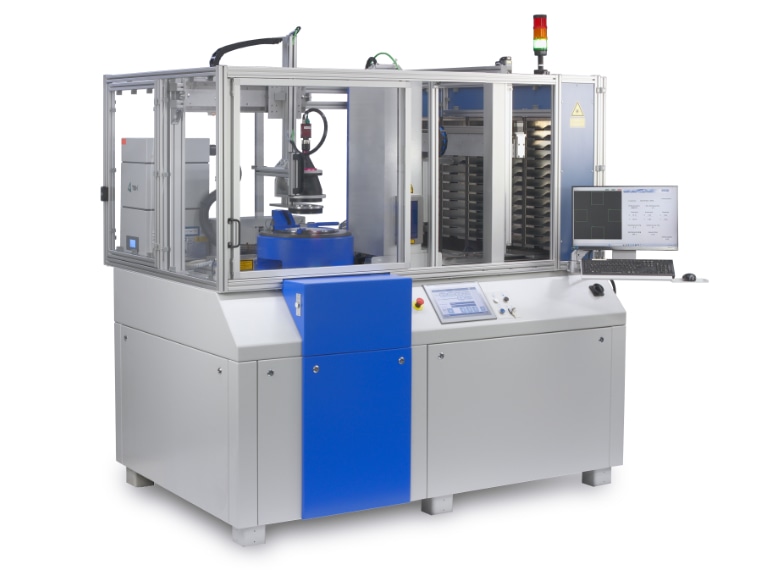

Introducing the new ERICHSEN fully automated sheet metal testing system (Model 145-60 Basic Automatic), engineered to deliver precision, reproducibility, and seamless workflow automation for sheet metal tests. Designed for demanding industrial environments such as the automotive and aerospace sectors, this testing system sets a new standard in automated material testing by combining advanced sensor technology, intuitive controls, and comprehensive data documentation.
The Model 145-60 Basic Automatic covers complete test sequences – from automatic sample feeding and centering to evaluation and documentation — ensuring reliable, reproducible results with minimal operator involvement. Fully compliant with key international standards such as ISO 16630 (Hole Expansion Test) and PV1054 (Waviness Test), this system supports consistent quality assurance and efficient throughput in both production and laboratory settings.

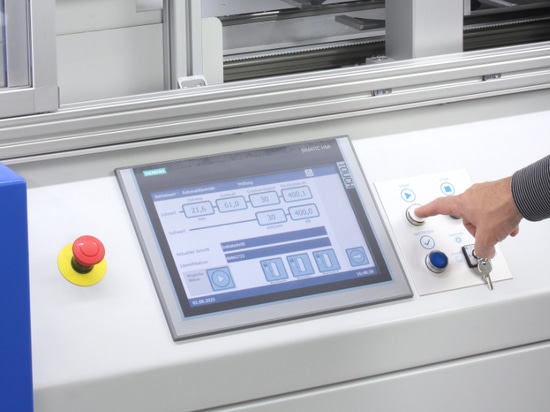

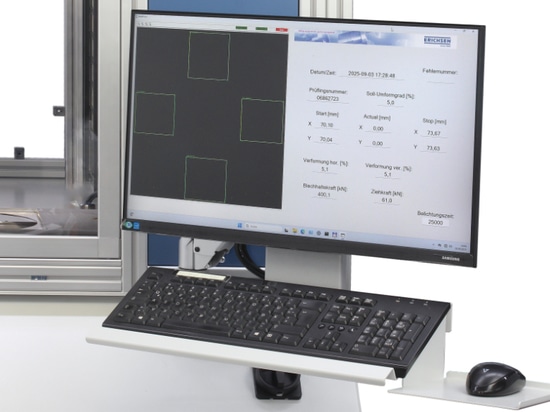

A modern touch panel interface enables straightforward control, clear display of test parameters, and real-time monitoring of the testing process. Operators benefit from enhanced safety and usability, while the integrated industrial PC runs the intuitive ERICHSEN evaluation software for automatic capture, storage, and documentation of all test data — with options for network integration into existing quality management systems.

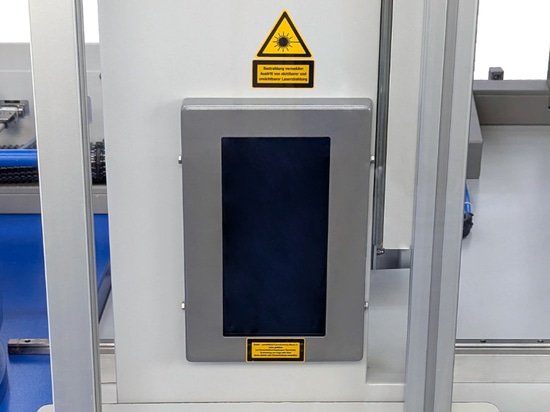

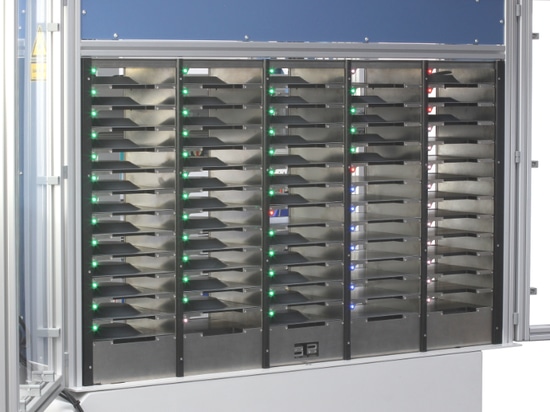

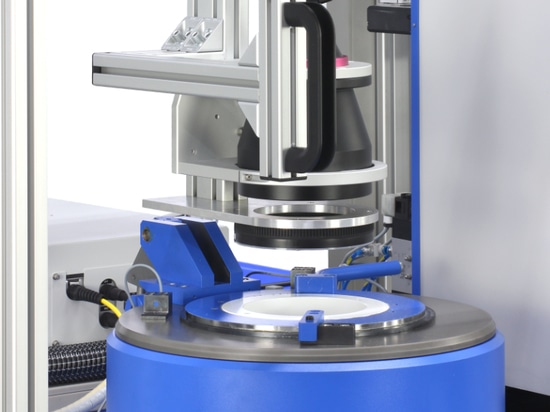

Advanced optical measurement technology, including the HEXRASCAN evaluation unit, ensures precise detection of expanded hole diameters and accurate crack initiation identification. The system also features automated sample marking (for specified standards) and a magazine capable of holding up to 52 sheets, reducing handling time and increasing testing throughput.
Built for continuous industrial use and tailored to the specific needs of quality control and materials research, the new ERICHSEN Fully Automated Sheet Metal Testing System delivers unparalleled precision, efficiency, and integration — making it an indispensable tool for modern sheet metal testing workflows.
