Air/Water exchanger AERO 3500 for hydrogen station

Starting point of a new long term projet on renewable energy sector

First unit of a (long term) series of production, this Air/Water exchanger will cool the next ORTEC group hydrogen stations, all around Europe.
- 360 kW of cooling power for an air inlet of 40°C, and a 35% glycol water outlet of 60°C* ;
- a "cooling" loop with 4 fans, 1 variable-speed pump, 1 3-way valve with servomotor, etc.;
- and a "battery" loop with 1 variable-speed pump;
- all controlled by a control cabinet with an Eliwell Free Advance PLC (with fan and pump speed control, ModBus TCP/IP communication, read/write of setpoints, etc.);

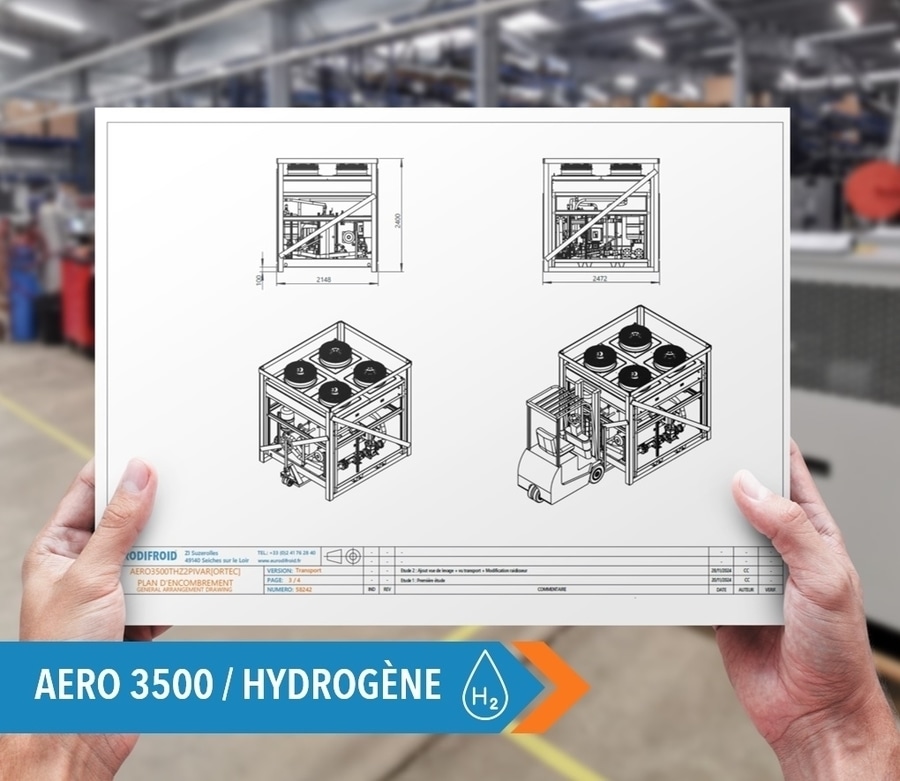

This cooling device will be fitted into a streamlined monobloc chassis, which must itself be integrated into a shelter and efficiently connect to all the module's inputs/outputs.

Find out more about this project: https://www.eurodifroid.fr/en/news/aero-3500-ortec/

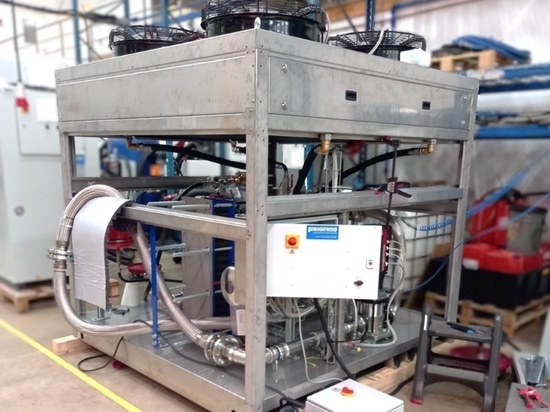

AERO 3500 EURODIFROID - Factory Acceptance Tests (FAT)
