Liquid Cooling Manifold Comprehensive Analysis of Design Details and Performance Standards

The CDU plays the role the heart plays: it produces no cold, but without it the coolant never moves. Its heart role pumps and distributes via the manifold, while its brain role senses and controls. Selection answers five questions: total flow above all cold plate minimums, head above maximum loop resistance, exchanger capacity above peak load with fouling margin, redunda...

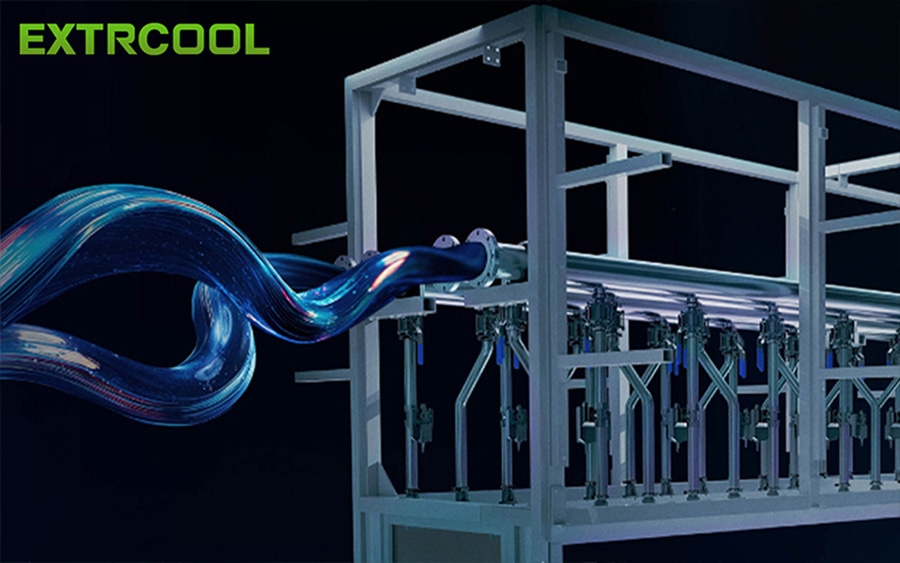

Rising AI GPU power is moving liquid cooling from whether it can cool to cooling precisely, and the manifold decides whether coolant reaches every position as it should. It distributes coolant through main channels to parallel branches and collects the heated return, following CDU to supply manifold to cold plate to return manifold to CDU. Poor design lets near-end branc...

Manifold manufacturing starts with material, and 316L is the safer default, with coolant compatibility outweighing thermal conductivity. CNC machining forms main channels, branches and interface holes, where holding channel positions matters more than drilling; one-piece machining avoids weld deformation, while tube and plate assemblies add laser, TIG or brazing. Deburri...
