Liquid Cooling Manifold Core Technology and Value in Modern Data Center Cooling

5% Flow Deviation, 16-24 Interfaces per Rack: The Engineering Precision Behind High-Density Liquid Cooling

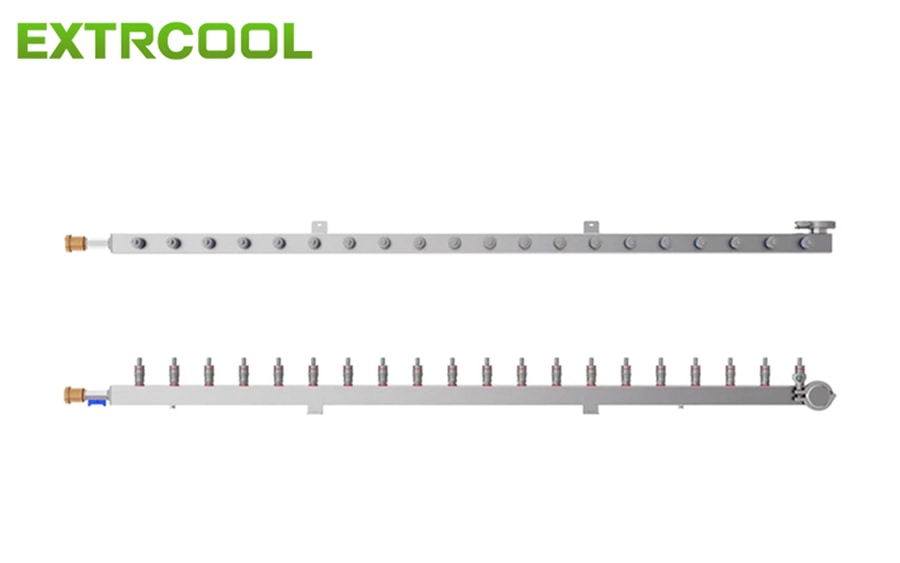

As the shunting hub between CDUs and server cold plates, liquid cooling manifolds deliver precise coolant distribution, holding branch flow deviation within 5% and serving 16-24 interfaces per 42U rack. Over 90% use 304 stainless steel with laser welding for 10+ years of leak-safe service, with single-row designs for 10-30kW racks and double-row for 50-120kW. Proper CDU-manifold matching keeps efficiency high, while CDUs and manifolds together represent 30-35% of system cost. Integrated modules cut leakage risks over 70%. EXTRCOOL offers dual-mode CDUs, manifold assemblies, cold plates, rear-door heat exchangers, dry coolers and containerized systems.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
