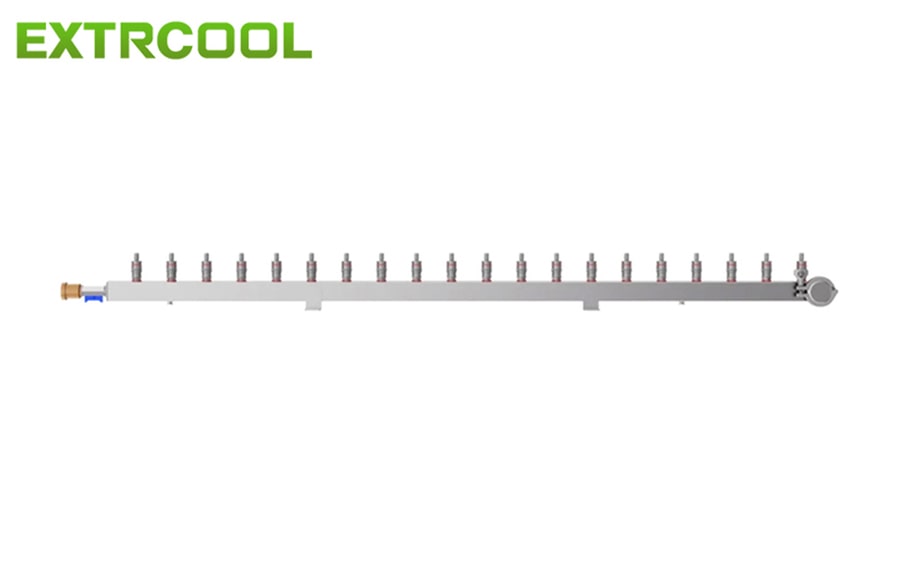

Liquid Cooling Manifold Indispensable Core Component for Server Heat Dissipation

16-24 Ports, 5% Flow Deviation, 10+ Years of Service: The Manifold That Keeps Server Racks Cool

Liquid cooling manifolds are the key flow distribution devices inside server racks, sitting between CDUs and cold plates to deliver coolant evenly—holding deviation within 5% across 16-24 ports per 42U rack. 304 stainless steel and vacuum brazing deliver 10+ years of service, with single/double-row designs for varied rack power. ASUS AI PODs adopt cold/heat separated dual-channel manifolds with blind insertion for fast assembly. While CDUs control total supply, manifolds regulate even distribution, together representing 30-35% of system cost. EXTRCOOL offers dual-mode CDUs, manifold assemblies, cold plates, rear-door heat exchangers, dry coolers and containerized systems.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
