CDU Core Heat Exchange Logic The Cornerstone of Modern Data Center Liquid Cooling Systems

Dual-Loop Isolation and 95% Plate Exchange Efficiency: The Heat Exchange Logic Behind 50-100kW Racks

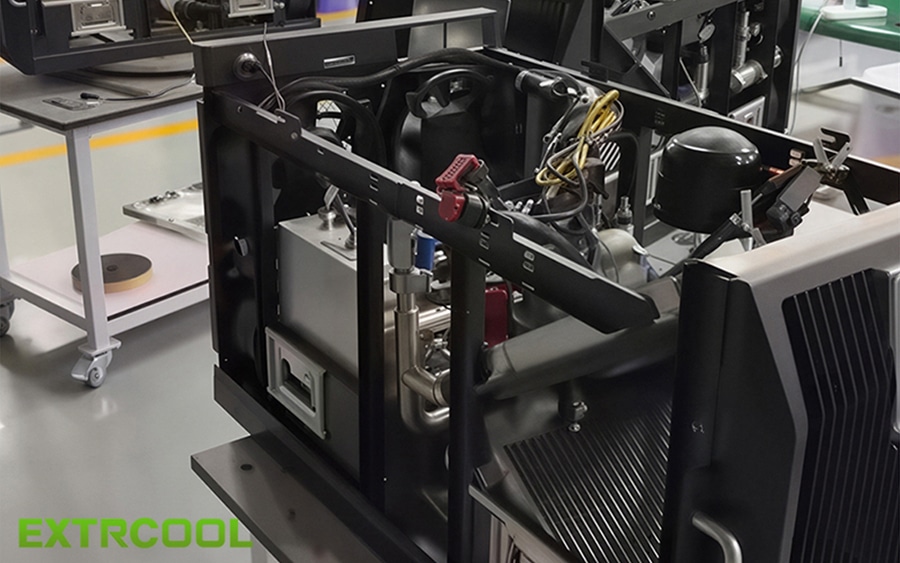

The CDU is the core hub of liquid cooling, connecting outdoor cold sources with server loops through a fully isolated dual-loop architecture. The primary loop circulates water or water-glycol through cooling towers and dry coolers, while the secondary loop delivers insulating, anti-corrosion coolant to servers. Plate heat exchangers achieve 95% transfer efficiency, cooling secondary coolant from 28-35℃ back to 18-25℃. Redundant variable-frequency pumps, filters and intelligent sensors hold temperature fluctuation within ±1℃, preventing condensation. For 50-100kW racks, the CDU cuts cooling energy by over 40%. EXTRCOOL offers dual-mode CDUs, manifolds, cold plates, rear-door heat exchangers, dry coolers and containerized units.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
