Understanding Manifold Core Functions and New Processes for Data Center Liquid Cooling

Leak-Free Hot-Swap and 30% Power Savings: The Core Functions Redefining Liquid Cooling Manifolds

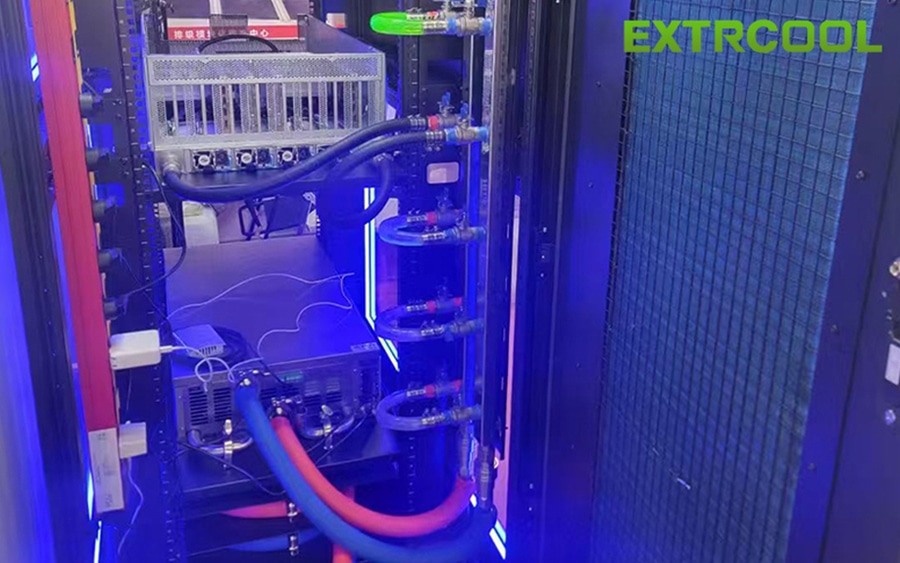

Manifolds are critical piping components linking CDUs with cold plate branch lines, evenly distributing coolant across every server board. Matched with double-sided self-sealing quick disconnects, they enable online hot-swap of single boards without shutting down the system—connecting automatically on assembly and cutting off leak-free. Manifolds cut overall power consumption by over 30% versus air cooling, lowering PUE for green data centers. On manufacturing, a Japanese maker showcased a resin injection-molded manifold, lighter and cheaper, already used in Fugaku supercomputer, though still in early verification. EXTRCOOL offers dual-mode CDUs, manifolds, cold plates, rear-door heat exchangers, dry coolers and containerized cooling units
