Functions and Technical Trends of Liquid Cooling Manifold in AI Data Centers

From Flow Distribution to Dynamic Redistribution: How Manifolds Are Turning Intelligent in AI Data Centers

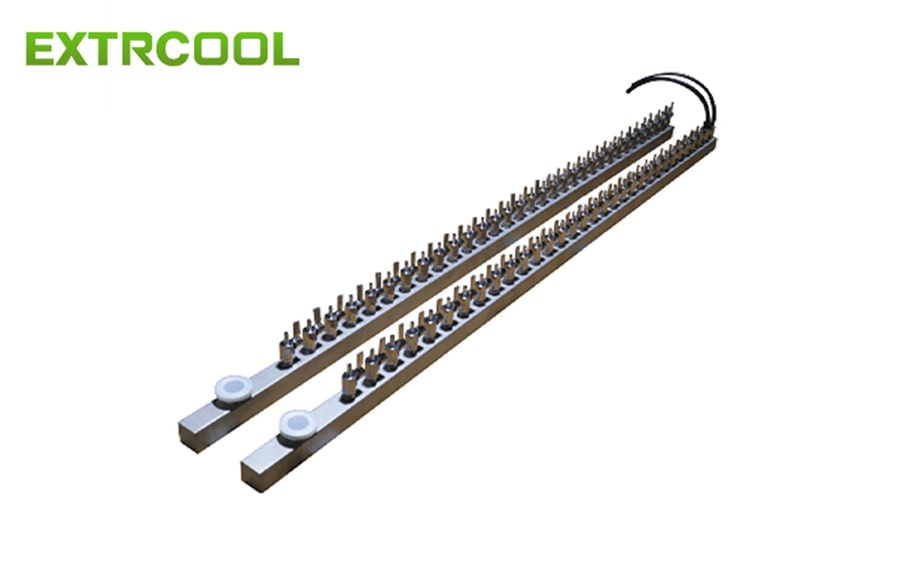

Liquid cooling manifolds serve as core piping components in AI data centers, evenly distributing coolant from CDU main pipes to server cold plates via branch nodes, then collecting heated fluid back through return pipes. Stainless steel with laser welding and vacuum brazing delivers seamless sealing, while single and double-row structures with equal-length channels balance flow. Compatible with quick connectors and pressure-resistant hot plugging, manifolds enable maintenance without shutdown. Modular CDU-manifold designs cut leakage risks, and built-in sensors feed branch flow data to CDU controllers for dynamic redistribution—improving PUE for green operation. EXTRCOOL provides one-stop full liquid cooling solutions.
