Structural Classification & Working Principle of Cold Plate Liquid Cooling CDU for Data Centers

Centralized vs Distributed, Liquid-to-Liquid vs Air-to-Liquid: A Field Guide to CDU Architectures

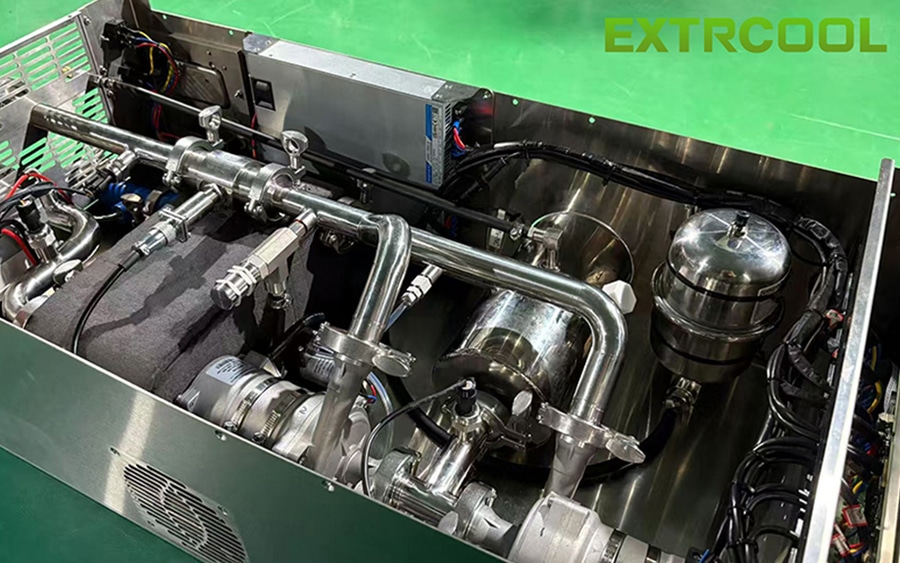

A cold plate liquid cooling CDU system comprises outdoor cold source, primary and secondary loops, CDU and liquid cooling racks. CDUs are classified by layout—centralized cabinet-mounted for large facilities or distributed rack-mounted for phased, variable-density deployment—and by heat exchange mode—liquid-to-liquid or air-to-liquid. A reference 4U rack-mounted liquid-to-liquid CDU from Coolit Systems and nVent integrates dual redundant centrifugal pumps, dual power, leak trays and sensors, a coolant tank with level monitoring and 100-micron filters, dew point control, ASHRAE W4 primary-loop compliance, pressure relief valves, low-noise design and universal voltage input. EXTRCOOL provides one-stop liquid cooling solutions.
