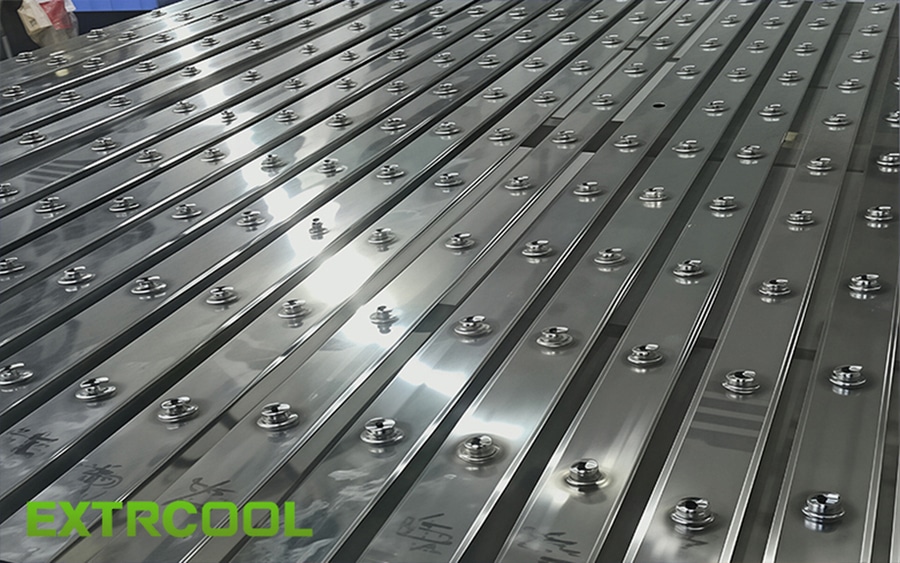

Liquid Cooling Manifold The Underrated Core Component for Modern Stable Data Center Cooling

Under 0.2 Bar Drop, ±10% Flow Balance, Zero Micro-Leakage: The Manifold Numbers That Matter

The liquid cooling manifold is the underrated core component for stable data center cooling, as most pipeline failures stem from machining errors and sealing defects. Premium products use equal-length, equal-resistance channels to keep multi-channel pressure drop below 0.2 bar and branch flow deviation within ±10%, eliminating hotspots for high-power AI servers. Industrial-grade manifolds pass hydraulic tests at 3-5 times working pressure, use 304/316L stainless steel or coated aluminum, and employ laser welding, vacuum brazing plus FFKM and fluororubber dual seals with 100% helium mass spectrometer leak detection for zero micro-leakage. EXTRCOOL provides one-stop liquid cooling solutions.
