Deep Dive into Liquid Cooling CDU Core Architecture and Operational Essentials

93-97% Heat Exchange, 5-Second Pump Switchover, ±0.5℃ Control: Inside the CDU's Core Modules

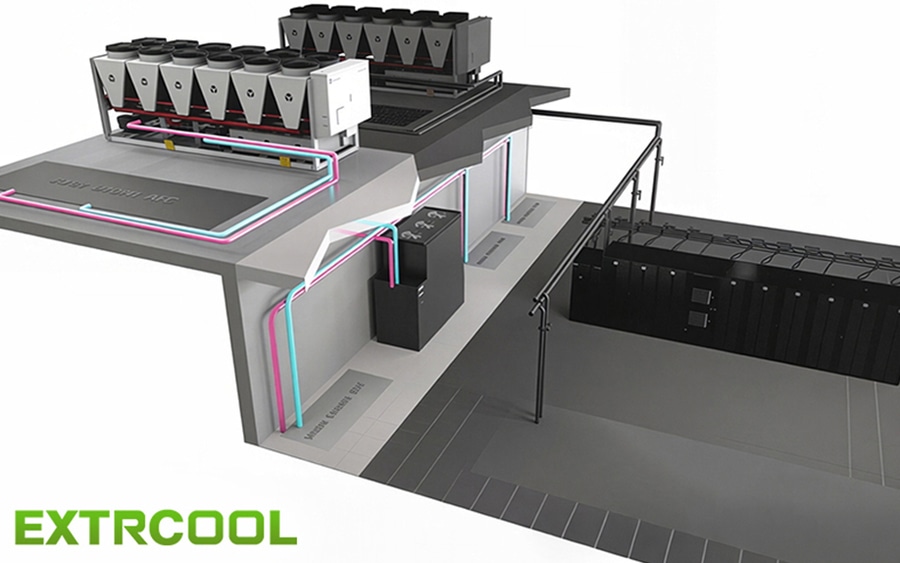

This deep dive into CDU core architecture covers the Cooling Distribution Unit's three functions—efficient cold transfer, dual-loop physical isolation and dynamic flow distribution—via plate heat exchangers achieving 93-97% efficiency with zero media mixing. Redundant 1-active-1-standby pumps switch within 5 seconds to prevent GPU thermal shutdown, while variable-frequency pumps lift efficiency over 30%. Pre-charged nitrogen expansion tanks, 50μm/20μm graded filters and ±0.5℃ electric regulating valves safeguard the loop, with PLC control, redundant sensors and AI predictive maintenance cutting failure rates by 60%. Modular rack-mounted units suit edge sites. EXTRCOOL provides one-stop liquid cooling solutions.
