Three Main Liquid Cooling Technologies for Modern Data Centers D2C Immersion and RDHx

Cold Plates for New Builds, Rear Doors for Retrofit, Immersion for Ultra-Density: Choosing Your Route

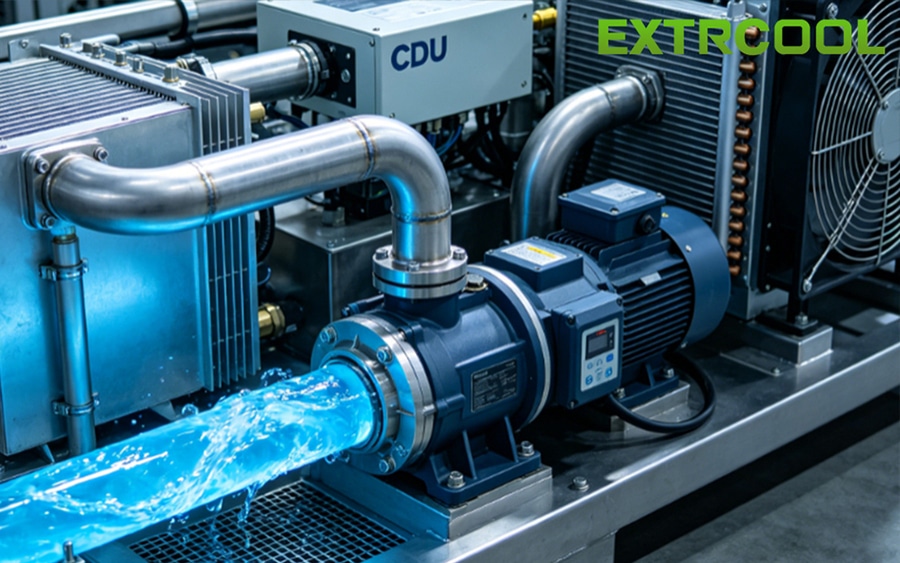

Three mainstream liquid cooling technologies serve modern data centers. Direct-to-Chip (D2C) cooling circulates coolant through cold plates directly above CPUs and GPUs in a closed loop driven by onboard pumps, with CDUs removing up to 80kW, variable-frequency load matching and rack-mounted layouts shortening pipelines. Rear Door Heat Exchanger (RDHx) offers a retrofit-friendly alternative where built-in fans cool hot rack exhaust in real time, cutting CRAC load without major infrastructure modification. Immersion cooling submerges entire servers in non-conductive, non-corrosive liquid, where component heat warms the coolant, causing natural rise before external cooling and recirculation. EXTRCOOL provides one-stop liquid cooling solutions.
