What Is a Manifold? The Critical "Vascular System" of Data Center Liquid Cooling Infrastructure

±2% Flow Deviation, 120kW+ Racks: How the Manifold Acts as Liquid Cooling's Vascular System

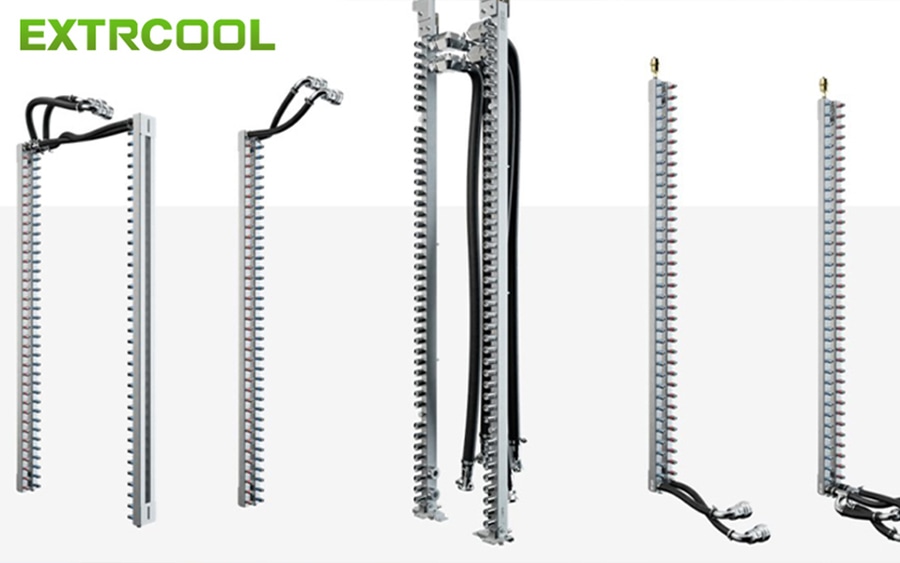

The liquid cooling manifold serves as the core vascular system of AI data centers, a precision multi-branch distribution hub that delivers coolant evenly to server cold plates and balances thermal circulation. Paired with CDUs, it forms a closed-loop heat exchange system solving uneven cooling across multi-server clusters. High-precision manifolds control branch flow, pressure and temperature with flow deviation within ±2%, coordinating with CDU parameters to maximize heat exchange efficiency and lower PUE. 304/316L stainless steel builds with precision welding suit low-density to 120kW+ GPU clusters, with blind-plug compatibility for NVIDIA GB200/GB300 AI POD racks. EXTRCOOL provides one-stop liquid cooling solutions.
