Manifold and CDU Jointly Secure Stable Operation of HighDensity AI LiquidCooled Racks

Brain and Vascular Link: How CDU-Manifold Coordination Keeps 120kW AI Racks Running Steady

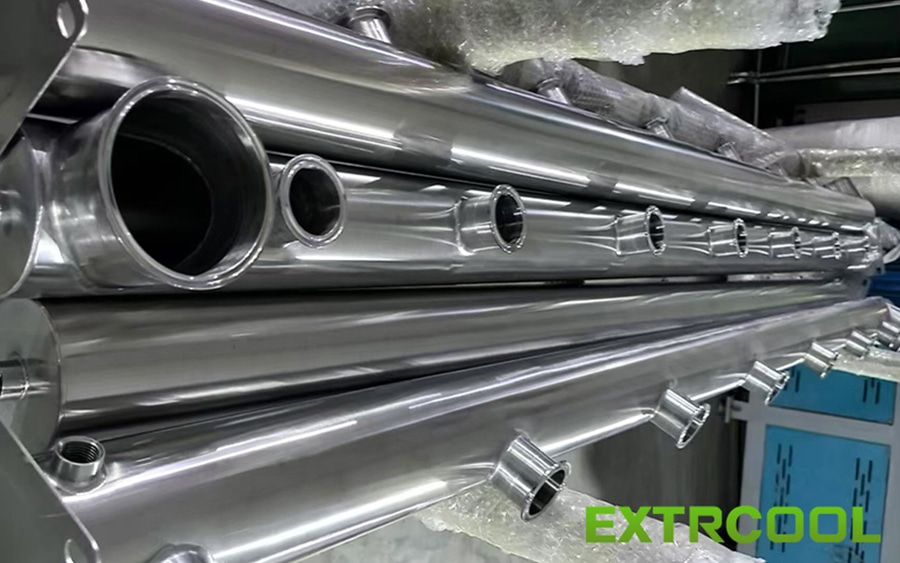

Within liquid cooling systems, the CDU governs total cooling capacity and fluid temperature while the server liquid coolant manifold delivers cooling power precisely to every thermal terminal, and their coordination determines whether AI servers run steadily at full-load 120kW. Manifolds adopt 304 or 316L stainless steel with 0.8-1.5mm walls sealed by laser welding or vacuum brazing. Structural design offers single-row pipes for 10-30kW racks with up to 12 ports and double-row pipes for 50-120kW racks with 16 or more ports. Interface compatibility spans UQD and CGD standards with blind-mate, manual-mate and hose modes. EXTRCOOL provides one-stop liquid cooling solutions.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
