A Structural Engineer’s Guide to Data Center Liquid Cooling: Fully Decoding the CDU — The Heart of Cooling Systems

Five Modules, Four Indicators, Three Pitfalls: The Structural Engineer's Checklist for 2.5MW CDU Design

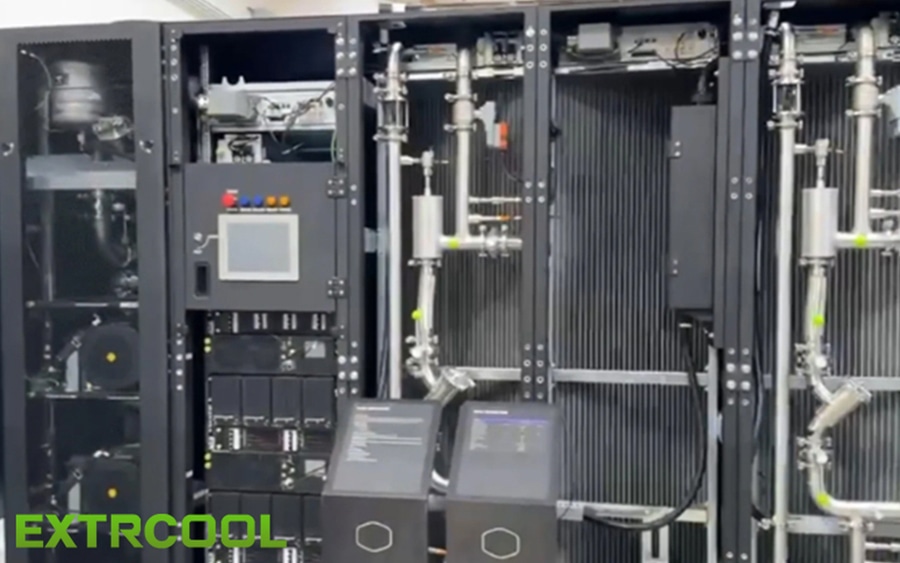

A 2.5MW Coolant Distribution Unit is far more than basic piping—it is a highly integrated heat exchange and circulation system where the primary loop delivers facility chilled water and the secondary loop supplies high-purity coolant to server cabinets through indirect plate heat exchanger transfer. Five core functional modules determine long-term stability: an N+1 redundant pump group whose head must cover pipeline resistance and cold plate pressure drop; the plate heat exchanger as the heat exchange core with space reserved for maintenance; plus manifolds, quick disconnect joints and integrated sensing systems. Scaling to 2.5MW raises floor load-bearing, pipe support and thermal expansion demands. Engineers prioritize serviceability, leakage prevention, standardized piping layout and assembly tooling, while common pitfalls include mismatched seals, deionized water material incompatibility and omitted expansion joints. EXTRCOOL provides one-stop liquid cooling solutions.
