The Fluid Heart of the Liquid Cooling Rack: Manifold Design, Technology and Trends

Five Duties, Three Structures, Four Indicators: The Design Logic of the Rack's Flow Commander

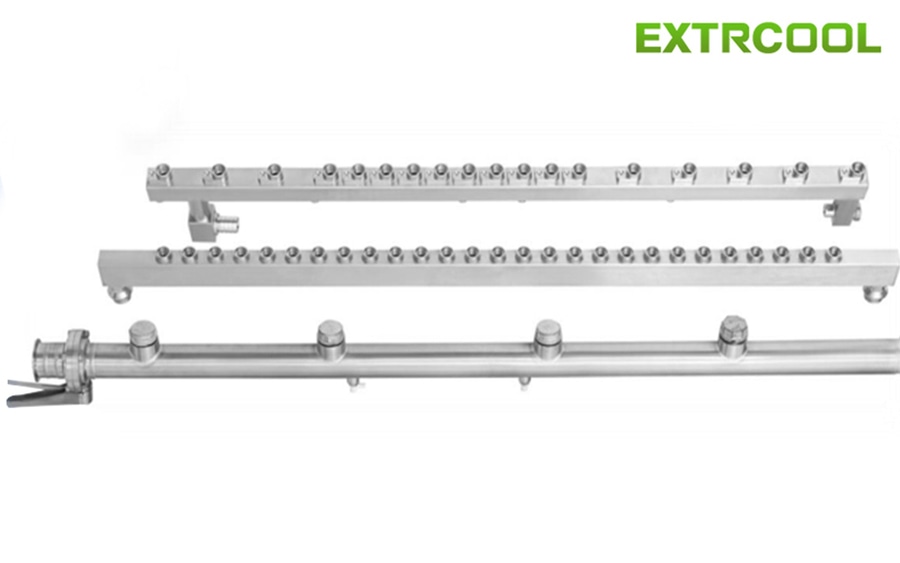

Once single-rack power crosses 60kW, cold-plate liquid cooling becomes the standard and the manifold—the fluid heart connecting the room-level CDU to every server cold plate—carries five closed-loop duties. Three structures serve different needs: the tree-branch type is the mainstream; the ring network gives near-identical pressure, uniform flow and the best redundancy; and the laminated plate type enables customized channels. A qualified manifold must pass four hard indicators—flow uniformity, low pressure drop, lifetime zero leakage and easy maintenance. Trends point to 3D-printed integration, per-branch intelligent regulation and modular cost efficiency. EXTRCOOL provides one-stop liquid cooling solutions.
