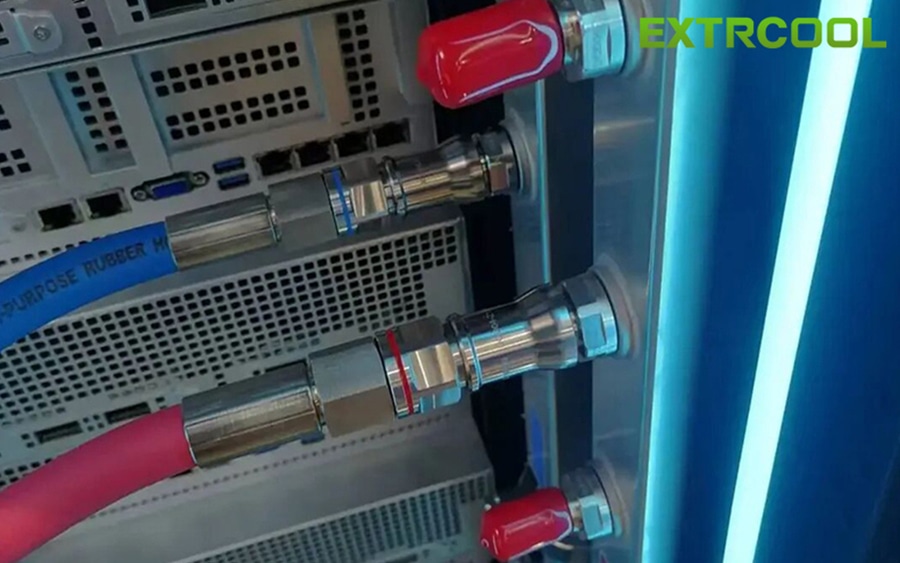

Beyond the Pipe: The Manifold as the Precision Core of High-End Fluid Systems

±2% Distribution, ±0.05mm Machining and 1.5× Pressure Holds: The Precision Standards Behind Every High-End Manifold

The manifold is more than a pipe with branches: it distributes, collects and stabilizes pressure across data center liquid cooling, aerospace and energy storage. In data centers it must hold distribution accuracy within ±2% to support racks above 100kW, while aerospace demands -200°C to 800°C, at least 3.0MPa and zero leakage. Material logic matches conditions: 304/316L stainless for 8-10 year life, aviation aluminum at one-third the weight, titanium and PTFE for extremes. Machining holds ±0.05mm for data centers and ±0.03mm for aerospace, with inspection requiring 1.5-times pressure holds and helium testing. EXTRCOOL provides one-stop liquid cooling solutions.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
