The CDU, the Heart and Brain Liquid Cooling Cannot Do Without

Silent When Healthy, Fatal When Failing: The Five Selection Questions That Decide Whether the CDU Holds the Loop Together

The CDU plays the role the heart plays: it produces no cold, but without it the coolant never moves. Its heart role pumps and distributes via the manifold, while its brain role senses and controls. Selection answers five questions: total flow above all cold plate minimums, head above maximum loop resistance, exchanger capacity above peak load with fouling margin, redundancy beyond N+1 covering switching path and temperature spike, and coolant-compatible materials. Architecture runs centralized for whole rooms or distributed for per-rack fault isolation. The CDU is the hidden lifeline least worth saving on. EXTRCOOL provides one-stop liquid cooling solutions.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED

Associated Trend items

Inside the CDU, the Seven Organs That Keep Liquid Cooling Alive

Heat Exchange to Control: The Seven-Organ Anatomy That Keeps Every CDU Alive

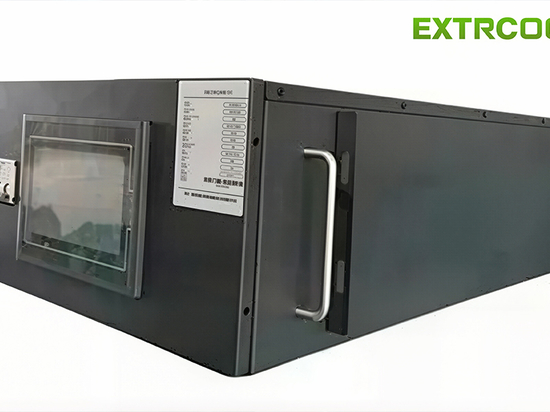

A CDU is a cooling station packing seven organs—heat exchange, power, pressure stabilization, refill, purification, regulation and control—in rack-type 30-100kW, row-type 200kW-1MW and centralized forms above 1MW. The plate heat exchanger reaches 3,000-5,000 W/(m²·K) at 95% efficiency with a 2-4°C approach; the pump delivers 0.5-0.8 L/min per kW at N+1 minimum redundancy...
