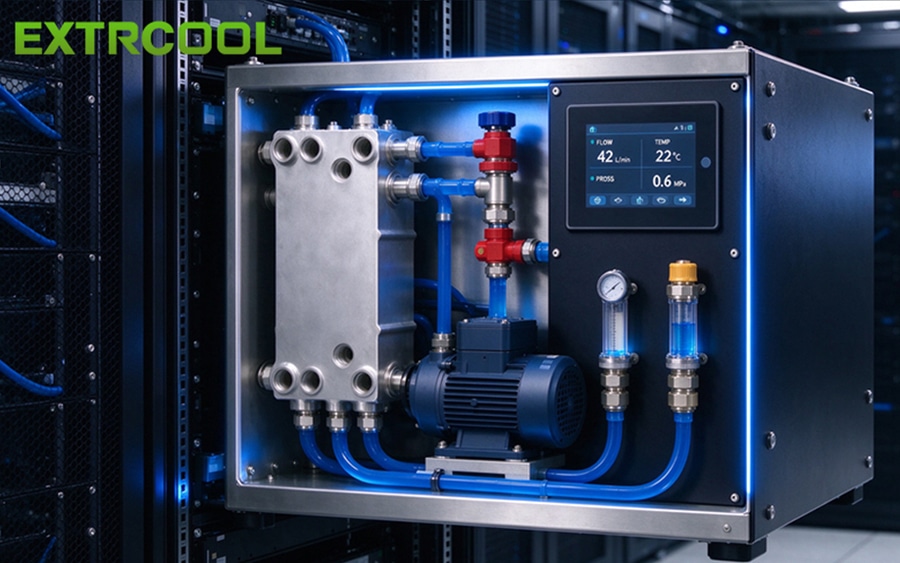

The CDU Line That Sends Cold to Every Chip, from Rack to Cabinet

10kW to 2MW, ±0.5°C and GB/T 48023-2026 Compliance: Three Forms of CDU Lineup Beating the First National Standard

AI server racks have passed 1MW and the hub that decides whether cooling capacity reaches every chip precisely is the CDU, with rack-mounted, cabinet and air-liquid forms spanning 10kW to 2MW. Three hard indicators define the line: outlet temperature held within ±0.5°C steady state, flow regulation from 0 to 100%, plus dual-pump hot swap and online maintenance. The first national standard GB/T 48023-2026 caps supply temperature deviation at ±1°C, and the unit beats it. The secondary side carries about 70-75% of system value with the CDU at 30-40%, second only to the cold plate. EXTRCOOL provides one-stop liquid cooling solutions.

More information

Details

Area 51, NV, USA

EXTRCOOL INDUSTRY LIMITED
