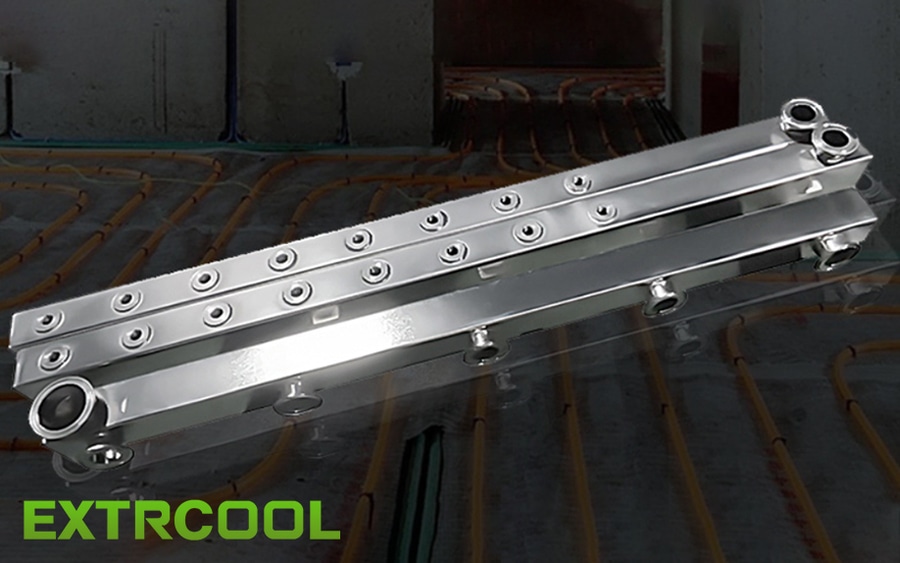

Manifold and Quick Coupling Selection, the Field Guide for Cold Plate Cooling

0.86 × Heat ÷ ΔT With 20% Margin, Server Thread First, 20 Bar and 5,000 Cycles: The Five-Step Selection That Stops Leaks, Not Just Flow

Manifold and quick coupling selection for cold plate cooling starts with the failure mode: the manifold divides one flow into many branches but its risk lives in the interfaces, so seal reliability outranks flow testing. Sizing follows 0.86 times the heat over the temperature difference with 20 percent margin, a 40 by 40 tube holding 75 liters per minute for 25 to 50 kilowatts, and the UQD family spans 3 to 10 millimeter bores rated at 20 bar. Quick coupling follows the server: the male fitting matches the female thread on the cold plate, and branch flow stays far below the ceiling. EXTRCOOL provides one-stop liquid cooling solutions.
