Robust 60V switching power supplies from FEAS (IP65-IP69K)
SNT14060 and SNT14060-K for demanding industrial applications

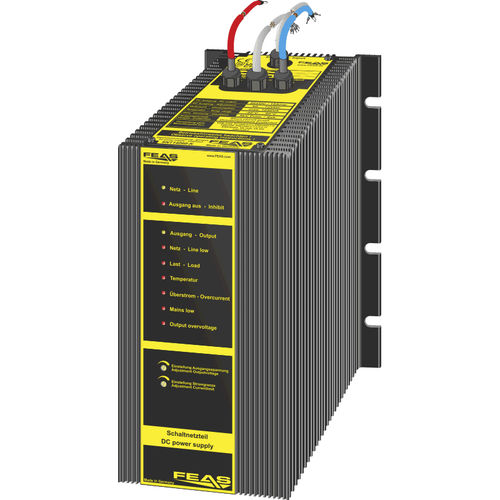

The powerful SNT14060 switching power supplies from FEAS with 60 VDC output voltage and 15 A output current have been specially developed for use in harsh industrial environments. With a robust, fully encapsulated aluminium housing, these power supply units are vibration-resistant, tropicalised and offer protection ratings up to IP69K as a cable version.
Two variants:
- SNT14060: version with terminal connection
- SNT14060-K: with cable connections for a particularly high degree of protection (IP65-IP69K)
Both models have an adjustable output voltage of 60.0 to 72.0 VDC and offer a boost function that delivers up to 120 % of the rated current for a short time - ideal for loads with high starting current requirements.
A special plus: the output voltage can be regulated externally via an integrated 0-10 V interface. Both versions also offer relay contacts for remote monitoring. An integrated microprocessor-controlled monitoring management system with LED display enables permanent monitoring of input and output voltage, load range and temperature. Additional safety functions such as fuse mode ensure safe switch-off in the event of overload.
With an efficiency of up to 95% and a wide input voltage range of 85-270 VAC or 120-400 VDC, the SNT14060 series power supply units are versatile and fulfil international safety standards in accordance with VDE, EN, UL and CSA.
For more information on the SNT140 series (24 VDC or 60 VDC) and many other
switching power supplies to suit your specific applications, please visit our website.
FEAS GmbH
www.feas.com
