Linear positioning stage FSK40IS-X

Automated visual inspection of electronic products and PCB inspection (appearance defects, solder joints, component placement).

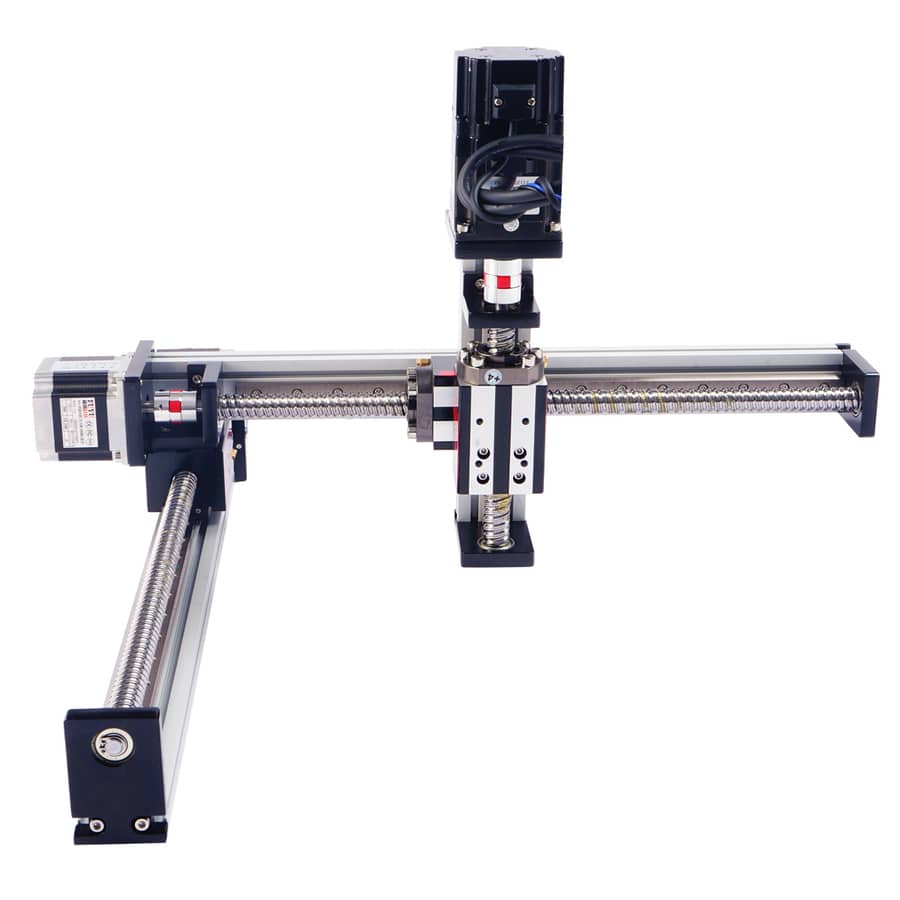

Three-axis motorized linear motion platform with ball screw modules for precise vertical and horizontal positioning.
Designed for integration with industrial cameras to perform high-precision positioning and scanning inspection of PCB appearance defects, solder joints and component mounting.

Technical specifications
Series: FSK40IS-X
Stroke length: 50 mm–1000 mm
Position accuracy: 0.03 mm
Speed range: up to 255 mm/s
Load capacity: 25 kg
Ball screw options: G1204 / G1605 / G1610

More information

Details

2 Chang Cheng Lu, Chong Zhou Shi, Cheng Du Shi, Si Chuan Sheng, China, 611235

FUYU Technology
