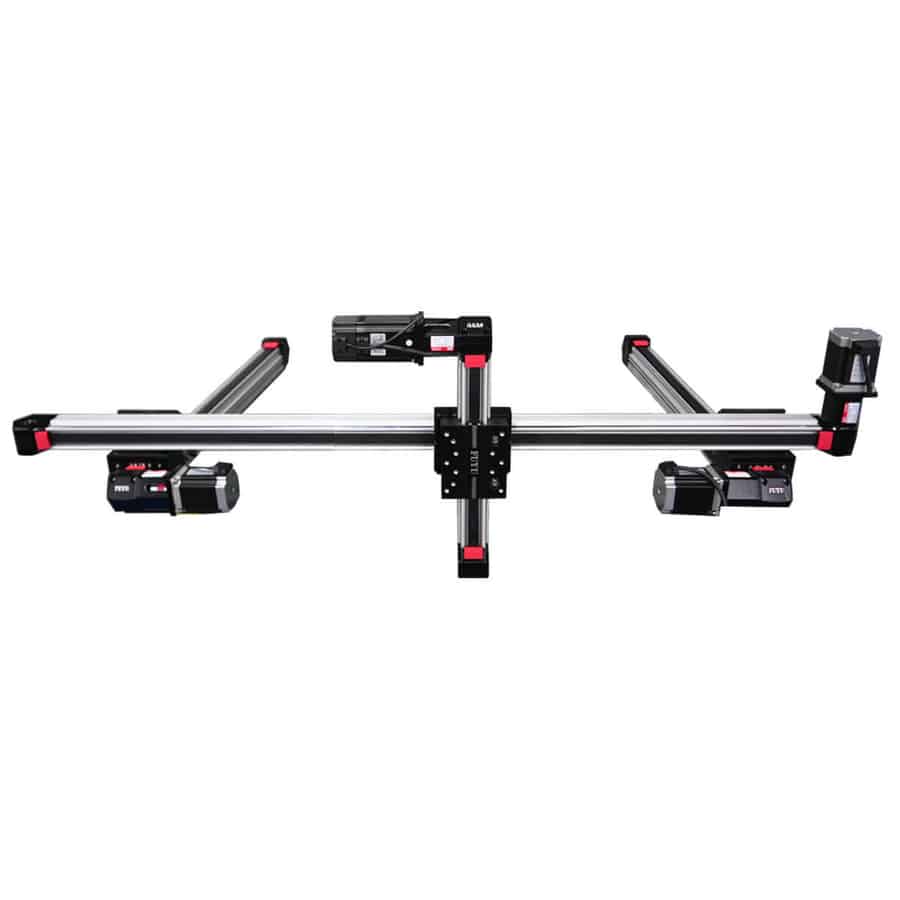

Electric linear gantry module FPB45IS-L

Customized non-standardised Linear Motion Stage specifically designed for Industrial Automation

Short Description
Customized non-standardised Linear Motion Stage specifically designed for 3D printing, featuring three-axis synchronised movement driven by a modular system. The print head / laser head moves precisely along the trajectory of the sliced model, ensuring stable, vibration-free movement and enabling continuous, uniform and high-precision printing.

Key parameters (summary)
Series: FPB45IS-L
Stroke Range: 100mm-3900mm
Position Accuracy: 0.05mm
Max Speed: 2000mm/s
Max Load: 15kg

System General Parameters (table)
Position Accuracy (mm): ±0.05
Ladder type Screw Diameter (mm): 70
Acceleration and deceleration time (S): 0.5

400W Servo motor
Horizontal — Loadings (KG): 2, 4, 6, 8, 10, 12, 14, 15 — Full Speed (mm/s): 2000 (for listed loadings)
Vertical — Loadings (KG): 2, 4, 6, 8, 10 — Full Speed (mm/s): 2000, 2000, 2000, 2000, 1500 (respectively)
Side mounted — Loadings (KG): 2, 4, 6, 8, 10 — Full Speed (mm/s): 2000 (for listed loadings)
Hoisting — Loadings (KG): 2, 4, 6, 8, 10 — Full Speed (mm/s): 2000 (for listed loadings)

5756 Stepper motor (4A current)
Horizontal — Loadings (KG): 2, 4, 6, 8, 10, 12, 14, 15 — Full Speed (mm/s): 1000, 1000, 800, 800, 600, 600, 500, 500 (respectively)
Hoisting — Loadings (KG): 2, 4, 6, 8, 10 — Full Speed (mm/s): 1000, 800, 800, 600, 400 (respectively)
Side mounted — Loadings (KG): 2, 4, 6, 8, 10 — Full Speed (mm/s): 1000, 800, 800, 600, 400 (respectively)
Vertical — Loadings (KG): 1, 2, 3 — Full Speed (mm/s): 800, 600, 300 (respectively)

Noise level: ≤65dB

Product Detail (images and diagrams referenced on page)
Product includes multiple photos, diagrams and configuration images (mechanical layouts, multi-axis assemblies and component detail images).

Caractéristiques / spécifications techniques
Model / Series: FPB45IS-L
Stroke range: 100 mm – 3900 mm
Position accuracy: ±0.05 mm
Maximum linear speed: up to 2000 mm/s (depending on motor and load)
Maximum load capacity: up to 15 kg (application dependent)
Motor options: 400W servo motor or 5756 stepper motor (4A)
400W servo full speeds (examples): horizontal/side/hoisting up to 2000 mm/s; vertical up to 2000 mm/s (10 kg: 1500 mm/s)
5756 stepper full speeds (examples): horizontal up to 1000 mm/s for light loads down to 500 mm/s for heavier loads; vertical up to 800/600/300 mm/s depending on load
Screw diameter (ladder type): 70 mm
Acceleration / deceleration time: 0.5 s
Acoustic level: ≤65 dB
