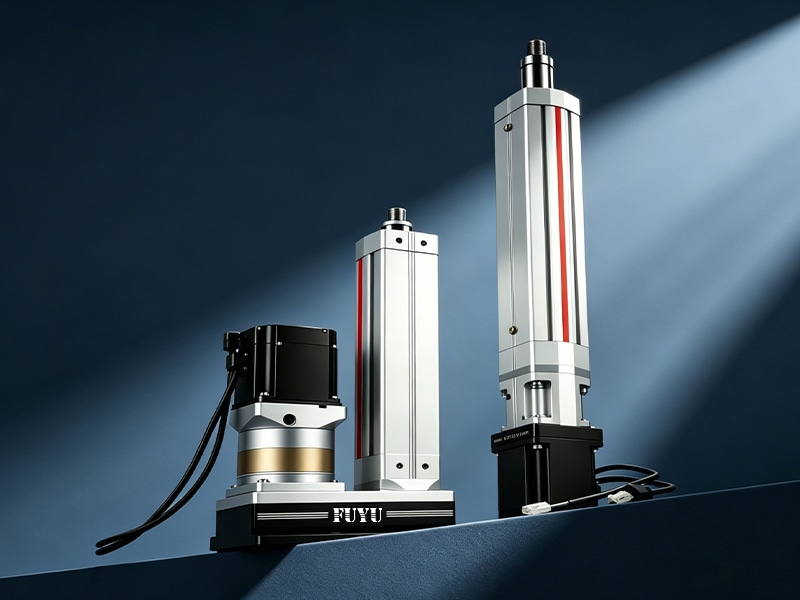

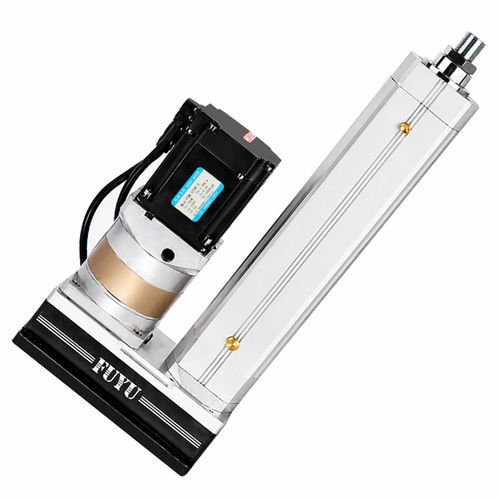

FUYU FEC60 Servo Electric Cylinder–4000N Force, ±0.02mm Precision, and Full Industrial Communication

Upgrade Your Automation to Clean, Quiet, and Programmable Motion Control

Are you still relying on noisy, leak‑prone pneumatic or hydraulic cylinders? It’s time to move forward. The FUYU FEC60 is a 220V servo electric cylinder that combines industrial‑grade power, micron‑level accuracy, and smart connectivity – all in one compact, durable package.

Uncompromising Performance
Delivers 4000N (880lbs) of thrust/pull with a stroke range of 0–600mm and a maximum speed of 400mm/s. The 750W servo motor (rated torque 2.39N·m) and 10mm lead external circulation ball screw (S55C) provide smooth, responsive motion. Repeat positioning accuracy of ±0.02mm – ideal for precision positioning, clamping, lifting, and pushing.

Built to Last in Harsh Environments
6063A high‑strength aluminum alloy body (hard‑anodized, 15% stronger than standard 6063) resists impact and deformation.
45# steel piston rod with hard chrome plating for extreme wear and rust protection.
IP65 protection (water cannot penetrate the motor interior) – dust‑tight and protected against low‑pressure water jets.
6‑layer sealing system ensures reliable operation in wet, dusty, or dirty industrial conditions.
Operating temperature: -20°C to 50°C; noise level ≤70dB – clean and quiet.

Smart Control & Seamless Integration
Supports position, speed, and torque control modes with multiple industrial communication protocols:
Modbus
CANopen
EtherCAT
Easily programmable for fully automated systems. No more fixed‑stroke limitations – you gain arbitrary positioning, variable speed, and adjustable force in real time.

Reinforced Structure for Stability
Innovative cross‑section design (≈2000mm² vs. industry average 1500mm²) increases sectional area by 33%, significantly enhancing bending modulus. Optimized via finite element analysis, plus reinforced front/rear supports – minimizes radial runout and ensures smooth high‑speed operation while maintaining parallelism and concentricity.

Low Maintenance, Long Service Life
Pre‑filled with long‑life #2 lithium grease – DO NOT use liquid oil. Self‑lubricating sealed structure extends maintenance intervals by 3× compared to standard cylinders. Recommended regreasing every 100km or 3‑6 months depending on environment.
2‑year or 10,000km warranty – saves you downtime and labor costs.

Where Can You Use It?
Widely applied in:
Metallurgy (ladle tilting)
Landing gear mechanisms
Solar panel tracking systems
Stage lifts and theatre automation
Material pushing/clamping in production lines
Product positioning and lifting platforms
From heavy‑duty industrial machinery to precision automation, the FEC60 delivers consistent, reliable performance.

Ready to Upgrade Your Automation?
Stop dealing with air leaks, oil contamination, and fixed‑stroke limitations. The FUYU FEC60 gives you precision, power, and programmability – all while being environmentally friendly and almost maintenance‑free.
