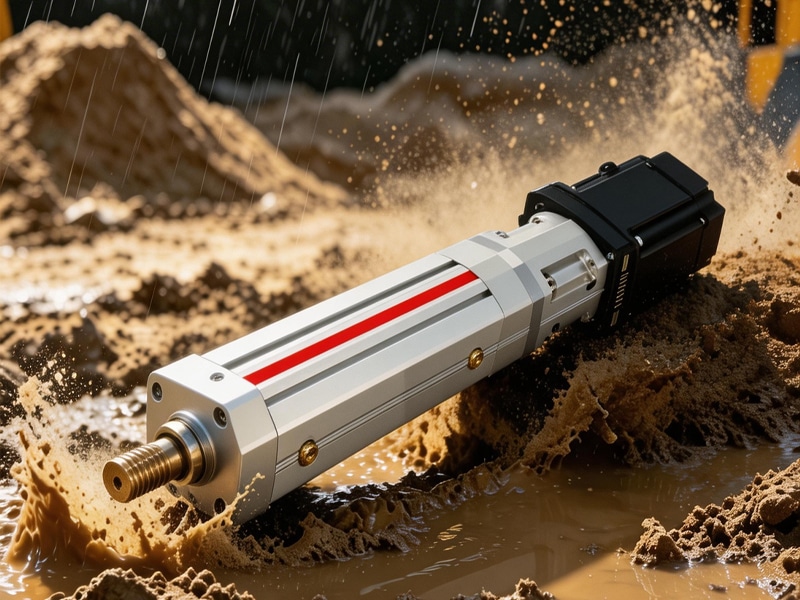

FUYU FEC60 Electric Cylinder: Precision Redefined, Power Optimized

Unleash High-Performance Linear Motion for Modern Automation

Elevate your industrial automation with the FUYUFEC60 Electric Cylinder, engineered to deliver exceptional precision, robust power, and unmatched reliability. Designed as a superior alternative to traditional pneumatic and hydraulic cylinders, it meets the most demanding linear motion needs across diverse industries.
Core Performance Parameters
Equipped with a 750W servo motor (rated torque 2.39N·M), our electric cylinder offers a stroke range of 0 to 600mm, with a maximum push/pull force of 400kg and a top speed of 400mm/s. It achieves a remarkable repeat positioning accuracy of ±0.02mm, ensuring consistent and precise movement every time. The outer-circulation ball screw (S55C material, 10mm lead) enables smooth operation and enhanced durability. With an IP65 protection rating, it operates reliably in temperatures from -20°C to 50°C, with noise levels ≤70db. Supporting Modbus, CANopen, and EtherCAT communication protocols, it offers flexible control modes: position, speed, and torque.
Superior Structure & Premium Materials
The FUYUFEC60 stands out with its high-strength 6063A aluminum alloy cylinder body, boasting a 15% strength increase over standard 6063 aluminum. Its innovative cross-section design (2000mm², 33% larger than average) optimized via finite element analysis delivers exceptional structural rigidity, minimizing deformation under heavy loads. The 45# high-strength steel piston rod, hard chrome-plated for extreme wear resistance, ensures long-term, smooth operation. Reinforced supports reduce radial runout, while the optimized S55C ball screw nut increases dynamic load capacity by 24%, perfect for high-frequency, heavy-duty cycles.
Advanced Sealing & Low-Maintenance Design
Featuring a six-channel sealing system (dust rings, seals, non-asbestos gaskets, O-rings), our electric cylinder provides comprehensive protection against dust, moisture, and contaminants. The genuine IP65 rating ensures reliable performance in dusty, humid, or wet environments—ideal for outdoor and workshop use. Pre-filled with long-lasting lithium-based grease (2#) and a sealed self-lubricating structure, it eliminates the risk of grease leakage or evaporation. With a maintenance interval 3x longer than the industry average (every 100km or 3-6 months), it minimizes downtime and labor costs, perfect for continuous automated production lines.
Electric Cylinder vs. Pneumatic & Hydraulic Cylinders
Precision: ±0.02mm (electric) vs. ±3mm (pneumatic) vs. ±1mm (hydraulic)
Adjustability: Infinite precise position, speed, and thrust control (electric) vs. limited fixed positions and coarse adjustment (pneumatic/hydraulic)
Environmental Friendliness: Clean, quiet, and eco-friendly (electric) vs. noisy exhaust (pneumatic) and oil leakage (hydraulic)
Wide-Ranging Applications
Ideal for metallurgy (ladle tilting), drone landing gear, lifting platforms, solar panel tracking, stage/screen lifting, and automated production lines (pushing, clamping, positioning).
Warranty & Support
We offer a 2-year or 10,000km warranty. For maintenance, use only 2# lithium-based grease—avoid liquid lubricants to prevent internal damage.
Upgrade your automation today with the FUYUFEC60 Electric Cylinder—where precision meets power, and reliability drives productivity.
