GMC-P7 (F8) Manual Batching Weighing Indicator

The Manual Batching Mode of the GMC-P7 (F8) is specifically developed for applications requiring accurate material proportioning by weight, where manual feeding is still essential but precision and traceability cannot be compromised.

Precision Manual Batching, Made Simple
General Measure proudly introduces the GMC-P7 (F8) — a new-generation intelligent weighing indicator designed for manual batching applications in food, retail, pharmaceutical, and industrial processing environments.

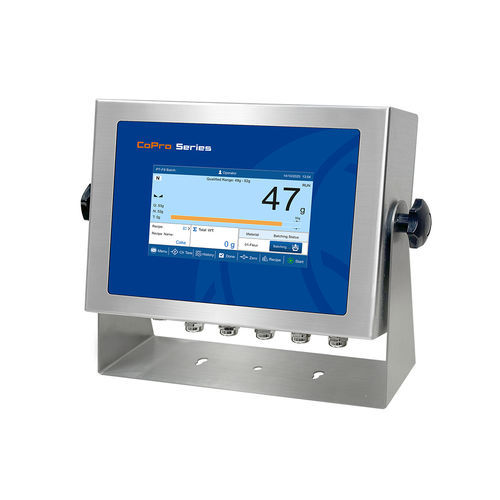

Built with a full stainless-steel enclosure and a 7-inch color touchscreen, the GMC-P7 (F8) combines durability, intuitive operation, and powerful batching control in one compact solution.

Designed for Accurate Manual Batching
The Manual Batching Mode of the GMC-P7 (F8) is specifically developed for applications requiring accurate material proportioning by weight, where manual feeding is still essential but precision and traceability cannot be compromised.

By guiding operators step by step through the batching process, the GMC-P7 (F8) effectively reduces human error, improves consistency, and significantly increases working efficiency.

Key Features & Functions
Intuitive Touchscreen Operation
7-inch high-resolution color touchscreen
Customizable startup interface
Clear, user-friendly menu structure for fast learning and operation
Advanced Manual Batching Control
Supports up to 10 recipes, each with 20 material components
Preset target weight, upper and lower tolerances for each material
Automatic tare before batching to eliminate container weight
Visual Weight Status Indication
Yellow interface/bar: under-weight condition
Red interface/bar: over-weight condition
Clear visual feedback helps operators reach target weight quickly and accurately
Comprehensive Data Management
Stores up to 1,000,000 batching records
Automatic generation of batch history after each completed recipe
Supports USB export for production analysis, quality control, and traceability
Optional data printing for batch documentation
Typical Applications
The GMC-P7 (F8) is ideally suited for manual weighing and batching of fine or mixed materials, including:

Food & bakery ingredients
Retail weighing and combination packaging
Pharmaceutical and nutraceutical raw materials
Chemical additives and powders
Feed and agricultural products
Plastic additives and masterbatch materials
Why Choose GMC-P7 (F8)?
✔ Higher batching accuracy with guided manual operation
✔ Reduced operator dependency and human error
✔ Clear visual feedback for faster decision-making
✔ Powerful recipe and data management capabilities
✔ Industrial-grade design for demanding environments

Empowering Precision, Enhancing Efficiency
The GMC-P7 (F8) Manual Batching Mode delivers a reliable and user-friendly solution for industries that demand precise manual material proportioning without sacrificing efficiency or data integrity.

With the GMC-P7 (F8), manual batching becomes smarter, more accurate, and fully traceable.
