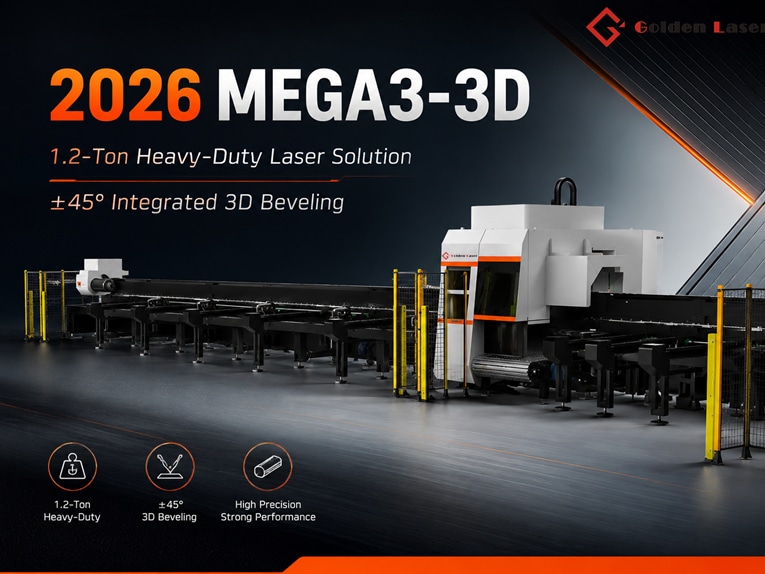

Golden Laser 2026 Upgrade: Solving the Toughest Bottlenecks in Heavy-Duty Tube Fabrication

The newly upgraded Mega3-3D combines a 1.2-ton payload capacity with ±45° 3D beveling and TubeST intelligent software to automate your heavy shop floor.

Processing oversized profiles in steel construction and heavy machinery traditionally requires fragmented, high-cost steps: crane logistics, mechanical sawing, manual drilling, and standalone beveling.

Golden Laser Europe bridges this efficiency gap with the upgraded 2026 Mega3-3D Heavy-Duty Fiber Laser Cutting Machine. This highly integrated system replaces traditional production lines by solving four critical shop-floor challenges:

• 1.2-Ton Heavy Payload Capacity
The Mega3-3D eliminates manual crane reliance by supporting single-profile static loads up to 1.2 Tons (1,200 kg) and heavy-walled tubes from Ø20mm to 350mm (round and square). It utilizes an advanced Inverted Mechanical Structure paired with chain-driven automatic loading and a floating flipping unloading mechanism to guarantee continuous, safe material flow.

• Real-Time Geometric Accuracy
Heavy, extra-long profiles often suffer from natural twisting and deflection. To maintain a high-fidelity positioning accuracy of ±0.05mm/m across a 6,000mm length, the Mega3-3D features rugged high-strength construction and automated Smart Dynamic Supports (upward/downward smart floating technology) that adapt to the tube's rotation in real-time.

• Two-in-One Cost & Labor Reduction
- True Zero-Tailings: A dynamic, moveable 3-chuck configuration shifts independently during processing to support multi-combination reverse cutting, minimizing premium steel scrap.
- Integrated ±45° 3D Beveling: A high-precision three-dimensional swing laser head executes precise angular bevel cuts directly during the primary cycle, delivering instantly weld-ready edges with zero secondary grinding labor.

• Code-Free Software Automation
To address the global skilled labor shortage, the machine integrates the FSCUT5000A bus control system and professional TubeST nesting software. Operators can batch-import IGS files, generate complex 3D parts via simple menu parameters without manual drafting, and deploy common-line nesting to reduce cycle times and gas consumption.

• Multi-Industry Application Standards
Configured with high-efficiency fiber laser sources from 3,000W to 12,000W, the 2026 Mega3-3D serves as a single-source fabrication upgrade. It is purpose-built to scale throughput for:
- Heavy Vehicles, Crane Lifting, and Port Machinery
- Mining and Agricultural Equipment
- Shipbuilding, Oil Exploration, and Petrochemical Pipelines
- Civil Engineering, Steel Bridges, and Structural Steel Buildings
