Case Study: Driving Automation in Heavy Steel Manufacturing via Integrated Fiber Laser Cutting Systems

From 3D tube processing to dual-shuttle plate cutting, examining the floor deployment at a Taiwan structural steel facility.

Introduction: Solving Bottlenecks in Structural Steel Processing
In structural steel and heavy equipment manufacturing, throughput and tolerance accuracy directly dictate project profitability. Fabricators dealing with heavy structural elements—such as H-beams, channel steel, and thick structural plates—often encounter bottlenecks in multi-step processing, including manual drilling, mechanical beveling, and offline edge grinding.

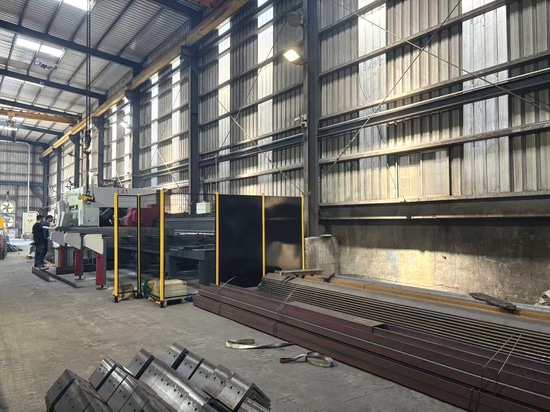

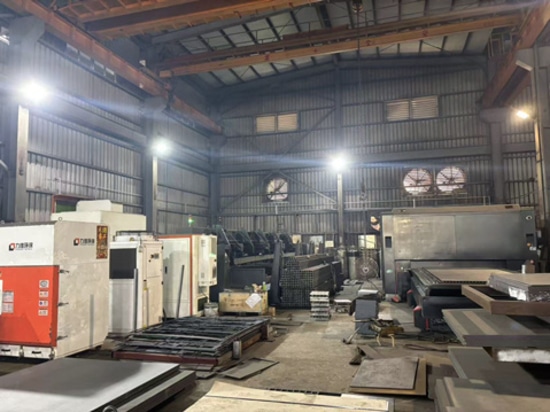

To streamline these operations, two leading heavy steel manufacturers in Taiwan updated their production line by deploying a multi-machine fiber laser setup from Golden Laser. The site integration combines 3D beveling tube cutters, dual-shuttle sheet lasers, open-bed thick plate cutters, and specialized large-diameter tube machines into an integrated fabrication workflow.

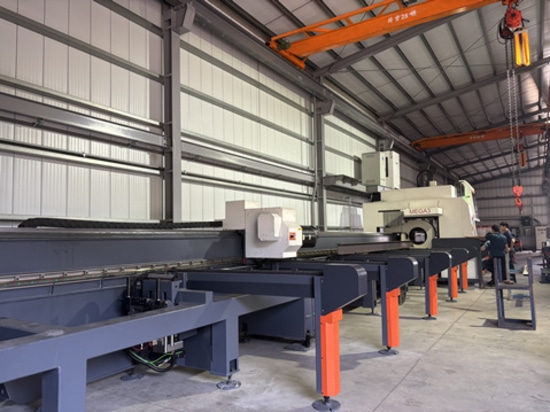

1. Mega3-3D Heavy-Duty Tube Laser Cutting Machine: Integrated 3D Beveling for Heavy Profiles
For structural steel fabricators, cutting heavy-duty pipes, square tubes, and structural profiles requires robust mechanical stability and high-precision beveling capabilities.

The Golden Laser Mega3-3D is specifically engineered for high-load tube processing. Installed at the client’s facility, it features dynamic 3D bevel-cutting capability, enabling seamless preparation for subsequent welding operations in a single pass.

Key Advantages: Eliminates manual grinding and mechanical beveling steps.

Structural Efficiency: Handles large-section structural tubes and heavy profiles with ease, ensuring high precision for complex structural joint assemblies.

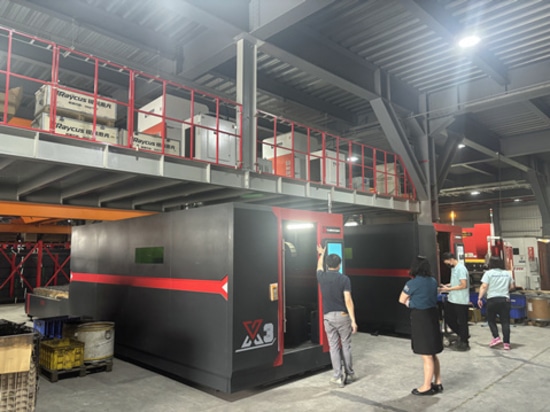

2. X3 High-Efficiency Dual-Shuttle Fiber Laser: Uninterrupted Sheet Metal Productivity
To eliminate production bottlenecks in sheet-metal component cutting, the manufacturer implemented the Golden Laser X3 Series, which is equipped with an automated shuttle table system.

Continuous Operation: While the laser head cuts components on one table inside the protective enclosure, operators safely unload processed parts and reload raw material on the external shuttle table.

Maximum Throughput: Reduces idle loading/unloading times by up to 70%, ensuring maximum laser source uptime during long shifts.

Precision & Speed: Provides dynamic acceleration and precise beam delivery for thin-to-medium sheet metal fabrication.

3. E6 & E8 Open-Type Fiber Laser Cutters: Direct Access for Heavy Thick Plate Processing
Heavy structural engineering routinely demands cutting high-thickness steel plates for baseplates, gussets, and structural flanges. The deployment of Golden Laser E6 and E8 open-type machines provides the client with flexible, large-format, high-power processing.

Open-Bed Ergonomics: Allows convenient overhead crane loading of heavy, thick metal plates.

High-Power Thick Plate Cutting: Easily pierces and cuts heavy carbon steel and stainless steel plates with smooth edge quality, drastically reducing post-processing finishing costs.

4. Customized L41 Large-Tube Fiber Laser Machine: Purpose-Built Handling for Heavy Channels and Angles
Standard machine configurations often fall short when handling ultra-large diameters, specialized channel profiles, or unique structural angles. To address specific heavy-duty pipe and profile cutting demands, Golden Laser delivered a customized L41 Large-Tube Laser Cutting System.

Custom Profile Handling: Engineered to support large-diameter tubes and heavy structural angles (including angle steel and channels).

Industrial Durability: Designed with reinforced loading mechanisms and smart clamping systems to prevent tube deformation during high-speed rotational cutting.

Key Operational Metrics & Manufacturing Impact
By integrating this multi-tier laser cutting ecosystem, the Taiwanese heavy steel manufacturer achieved measurable shop-floor enhancements:

Process Consolidation: Transitions traditional mechanical cutting, drilling, and manual beveling into automated, multi-axis laser processing.

Weld-Ready Output: Precision 3D beveling directly on the tube laser minimizes edge preparation time before robotic or manual welding.

Capacity Flexibility: The combination of dedicated tube lasers (Mega3-3D, L41) and high-speed plate cutters (X3, E6, E8) creates a balanced shop floor capable of switching rapidly between structural tube and plate jobs.

Frequently Asked Questions (FAQ)
Q1: What are the main advantages of using 3D bevel tube laser cutting in structural steel fabrication?
A: 3D bevel tube laser cutting allows simultaneous cutting and beveling (e.g., V-bevel, A-bevel, or K-bevel) on thick-walled tubes and profiles. This eliminates offline mechanical edge prep, ensures precise joint fit-up, and improves weld quality in structural steel assembly.

Q2: How does a dual-shuttle table laser cutter like the X3 improve ROI?
A: Dual-shuttle systems allow continuous material loading and unloading during active laser processing. By minimizing machine idle time, overall daily throughput increases significantly, reducing unit cost and accelerating capital investment payback.

Q3: Can Golden Laser machines be customized for non-standard pipe and structural profile shapes?
A: Yes. Golden Laser offers tailored machine designs—such as the customized L41 system—to accommodate specific large-diameter ranges, heavy linear mass requirements, and special structural shapes like angle steel, channel steel, and I-beams.
