Three-Axis Linear Motor Selection Scheme for Gantry System

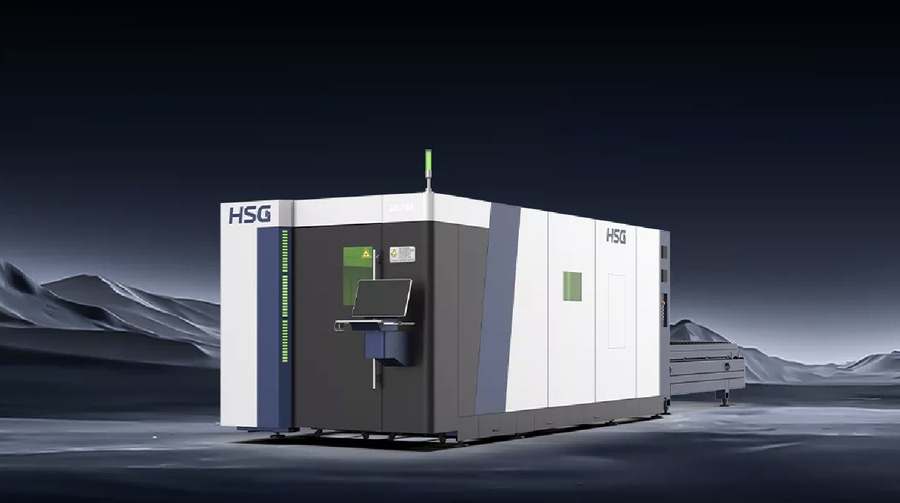

Case of HSG

Beam Axis Parameters (Provided by Client): Load 120kg, effective stroke 2050mm, moving speed 220m/min, acceleration 3g, repeat positioning accuracy ±0.01mm.
Gantry Axis Parameters (Provided by Client): Load 600kg, effective stroke 6000mm, moving speed 200m/min-220m/min, acceleration 3g, repeat positioning accuracy ±0.01mm.
Z-Axis Parameters (Provided by Client): Load 20kg, effective stroke 150mm, speed 60m/min, acceleration 3g, repeat positioning accuracy ±0.01mm.
