4-in-1 Screw Air Compressors for Automotive Manufacturing Earn Widespread Acclaim

Selection Guide, Application Scenarios, and Real User Reviews

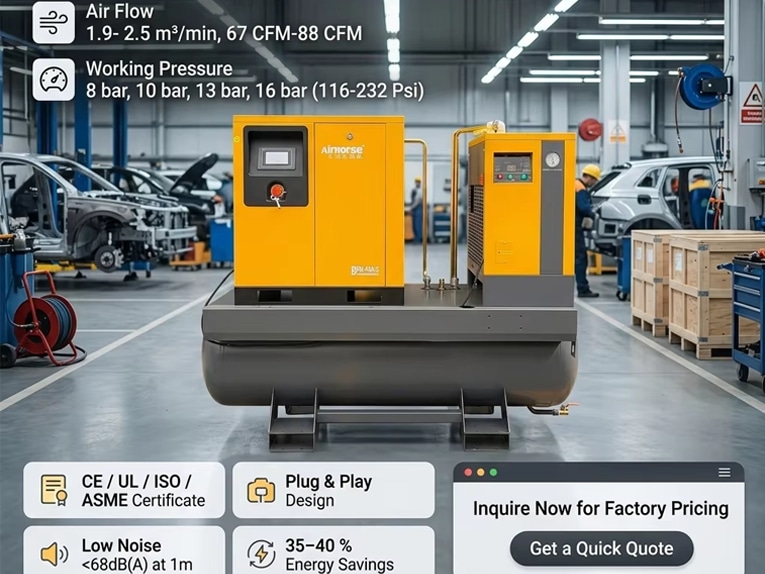

Compressed air is the unseen backbone of automotive production, powering everything from assembly tools to spray booths and leak-test stations. Over the past year, our platform has seen a 180% increase in sales of 4-in-1 integrated screw air compressors tailored for the automotive sector, accompanied by a 5/5 average buyer rating. Combining a VSD-driven screw compressor, refrigerated dryer, multi-stage filtration, and air receiver in one plug-and-play package, these machines are solving chronic pain points across vehicle manufacturing, component production, new energy vehicle (NEV) assembly, and two-wheeler plants. Here is how to select the right model, where each machine excels, and what buyers are saying.

How to Choose the Right 4-in-1 Screw Air Compressor for Automotive Applications

Selecting the correct integrated compressor requires matching the unit to your specific production profile. Our application engineers recommend a four-step approach:

1. Map your compressed air demand profile
Automotive plants rarely run at a steady load. In assembly lines, torque wrenches, pneumatic clamps, and impact guns cycle on and off rapidly, causing sharp air demand swings. In paint shops, spray guns require a continuous, precisely stable flow. In laser cutting/welding and leak testing, cleanliness and pressure consistency are critical. Start by listing all air-consuming tools and their duty cycles, then calculate the average and peak free air delivery (FAD) in m³/min. Typical requirements range from 0.33–3.8 m³/min for a small component line and full vehicle assembly plant. Our 4-in-1 units span 3kW to 22kW, covering most demands.

2. Prioritize pressure stability over raw pressure rating
Most automotive tools and processes require 7–13 bar, but sensitive operations like spray painting demand stability within ±0.1 bar. Our permanent magnet (PM) VSD compressors maintain exactly the target pressure regardless of load swings, eliminating the orange-peel effect or paint runs caused by pressure dips. For leak testing (engine blocks, fuel tanks, brake systems), a separate stable mid-pressure circuit can be set via the controller without oversizing.

3. Define air quality class

General assembly tools need ISO 8573-1 Class 2.4.2 (filtered, some water vapor acceptable).

Paint spraying and laser optics demand Class 1.4.1 or better (particles ≤0.1 µm, pressure dew point ≤+3°C, oil ≤0.01 mg/m³).

Cleanroom assembly for NEV battery/electronic systems often requires a -20°C to -40°C dew point and oil-free quality. Our 4-in-1 units with integrated dryers and activated carbon towers deliver this without external equipment, and we offer desiccant dryer variants for ultra-dry needs.

4. Factor in space and future expansion
Because the compressor, dryer, filters, and tank are mounted on a single compact frame, these machines require up to 60% less floor space than component-built systems. For shops planning to add robots or automated lines, choose a model with IOT-ready controls and VSD turndown to 20% flow, ensuring the system remains efficient even at low loads.

Why the 4-in-1 Design Is a Game-Changer for Automotive Manufacturing

The integrated architecture directly addresses automotive industry pain points:

PM VSD saves up to 40% energy. Assembly lines idle during breaks and shift changes. The VSD automatically lowers motor RPM to match reduced demand, while fixed-speed compressors would waste energy in unload cycles. With IE4 permanent magnet motors, efficiency stays flat across the load range.

Ultra-stable pressure for painting and sensitive instruments. A built-in high-resolution pressure transducer and advanced PID algorithm ensure output pressure fluctuation stays within ±0.05 bar, essential for topcoat finishes and repeatable pneumatic clamping.

Clean, dry air in one footprint. The combination of refrigerated drying (down to 3°C dew point), coalescing filtration (0.01 µm), and activated carbon adsorption removes moisture, oil vapor, and particulates down to levels safe for optics and spray booth air. Optional integrated desiccant dryers achieve -40°C dew point for NEV cleanrooms.

Plug-and-play installation. Pre-piped, pre-wired, and factory-tested, a 4-in-1 unit can be producing clean air within hours of arrival—crucial for line upgrades with minimal downtime.

Smart connectivity. IoT controllers enable remote monitoring, predictive filter life alerts, and integration with plant MES systems, allowing maintenance to shift from reactive to scheduled.

Where 4-in-1 Screw Compressors Shine – By Automotive Segment

1. Full Vehicle Manufacturing
Scenarios: Stamping shop pneumatic clutches/brakes, welding shop pneumatic weld guns and jigs, paint shop spraying and sanding, assembly line torquing and fastening.
Tools powered: Pneumatic impact wrenches, orbital sanders, spray guns, pneumatic robotic grippers, air clamps.
The 4-in-1 unit's ability to serve multiple lines with one compact system while maintaining ISO Class 1 air quality for painting makes it ideal. Peak demands during shift overlap are met without pressure sag.

2. Automotive Component Manufacturing
Scenarios: Engine block/transmission case leak testing, dry/wet machining chip removal, tire curing and inflation.
Tools powered: Leak test instruments, machining centers, air gauges, tire curing presses.
Components lines often run 24/7 with high sensitivity to downtime. The VSD’s soft-start and robust filtration protect sensitive leak-detection instruments from contamination, while the integrated tank buffers high-consumption spurts from machining centers.

3. New Energy Vehicle (NEV) Manufacturing
Scenarios: Battery pack assembly (pneumatic screwdrivers), motor stator post-impregnation blow-off, electronic control system clean assembly, lightweight material (carbon fiber/aluminum) joining via self-piercing riveting.
Tools powered: Pneumatic self-piercing rivet guns, precision electric-pneumatic screwdrivers, glue dispensing guns, cleanroom air supply systems.
NEV plants demand oil-free, bone-dry air for battery and electronics areas. Our 4-in-1 models with desiccant dryers and activated carbon towers deliver Class 0 equivalent oil-free air, avoiding the huge capital cost of oil-free compressors while meeting stringent cleanroom standards.

4. Motorcycle and E-Bike Manufacturing
Scenarios: Frame welding and grinding, engine/motor assembly, whole-vehicle leak testing, painting and baking lines.
Tools powered: Pneumatic welding guns, impact wrenches, spray guns, leak testers.
These lines are often space-constrained. The 4-in-1 footprint allows installation directly adjacent to the assembly cell, cutting piping losses. Users report faster color changes in painting thanks to the immediate dry air.

Verified Buyer Reviews: What Automotive Manufacturers Are Saying

“We produce car seats and interior trims. Our old compressor system was a nightmare—pressure drops during the afternoon shift caused torque wrench errors. Since installing the MachGo 15 kW 4-in-1 PM VSD unit, assembly rejection rates dropped to zero. The integrated dryer saved us from buying a separate unit, and it’s so quiet we put it right in the production hall.”
– Oliver Betz., Production Manager, Automotive Interior Supplier, Germany

“Our NEV battery pack assembly line requires absolutely clean air for screwdrivers and sealant dispensing. The 4-in-1 unit with desiccant dryer gives us a -40°C dew point and zero oil readings. It was delivered as a single pallet, and we had it running by lunchtime. Energy use is half of what we budgeted.”
– CHRONOTACHYGRAPHE CTACHY., Plant Engineer, Battery Pack Manufacturer, France

“I own a contract manufacturing workshop producing motorcycle frames. We spray paint in-house. The 4-in-1’s pressure stability transformed our finish quality—no more orange peel. I recommended it to a friend who runs an e-bike assembly factory, and he bought the same model. He’s seeing the same results.”
– Kiet N., Director, Motorcycle Parts JV, Vietnam

“We perform engine block leak testing around the clock. Moisture in the air used to give false fail readings. Since switching to the MachGo integrated unit with refrigeration dryer and filter, our first-pass yield improved by 7%. The system alerted us to change the filter element via the app, zero unplanned stops in 4,000 hours.”
– Li W., Quality Director, Engine Component Plant, China.

Get Your Tailored Automotive Compressed Air Solution

AirHorse technical Engineer are ready to analyze your specific line requirements and recommend a 4-in-1 screw compressor model perfectly sized and equipped for your process. Every unit is factory acceptance-tested under simulated automotive load profiles, and comes with a local service commitment in over 25 countries. Visit and contact our compressed air specialists to keep your automotive production running at peak efficiency.
