T109 GPS/GALILEO Time server with OSNMA and NTS protocol

NTP/NTS server unit with authenticated Galileo anti-spoofing

T109 GNSS NTP/NTS Server — Security and Precision, with Optional OSNMA

As cybersecurity becomes more critical than ever, the T109 delivers accurate and secure time synchronization for your network, with optional OSNMA anti-spoofing authentication.

OSNMA: Authenticating Galileo Signals
OSNMA (Open Service Navigation Message Authentication), developed by ESA for Galileo, provides cryptographic validation of navigation data. It protects against spoofing and ensures that received time signals have not been tampered with.

Why Choose the T109?
- Anti-spoofing: cryptographic validation of Galileo signals (OSNMA).Retour ligne manuel
- Redundancy: multi-constellation reception (Galileo + GPS), independent of a single system.Retour ligne manuel
- Precision: microsecond-level synchronization.Retour ligne manuel
- Performance: up to 10,000 NTP/NTS requests per second.Retour ligne manuel
- Compliance: meets the security requirements of critical infrastructure.

Network Protocol Security
- NTS (Network Time Security): encryption and authentication of NTP exchanges, protecting against spoofing and network interception.Retour ligne manuel
- HTTPS: secure access to the web administration interface.Retour ligne manuel
- SNMPv3: industrial-grade configuration and monitoring.

Network Connectivity
- 4 Ethernet LAN ports (Lan1 to Lan4) — 1 GbRetour ligne manuel
- 2 SFP ports (Sfp1, Sfp2) — 2.5 GbERetour ligne manuel
- 1 Ethernet WAN port — 1 Gb

Each port has its own independent network configuration (subnet, enable/disable, dedicated MAC address).

Other Features
- HTTP/HTTPS web interface available in French, English, and SpanishRetour ligne manuel
- Simple integration with existing NTP infrastructureRetour ligne manuel

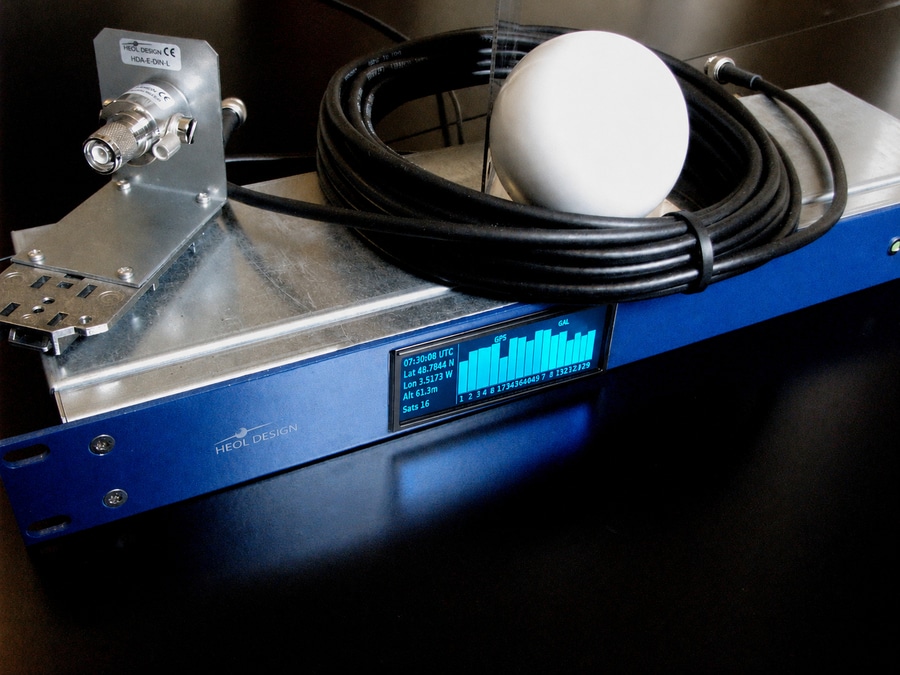

- OLED graphic display for quick status and parameter monitoringRetour ligne manuel
- SSH, syslog, SNMPv3, DHCPRetour ligne manuel
- OCXO or Rubidium oscillator option

Upgrade to a secure NTP/NTS server today. Contact us to learn more about the T109.
