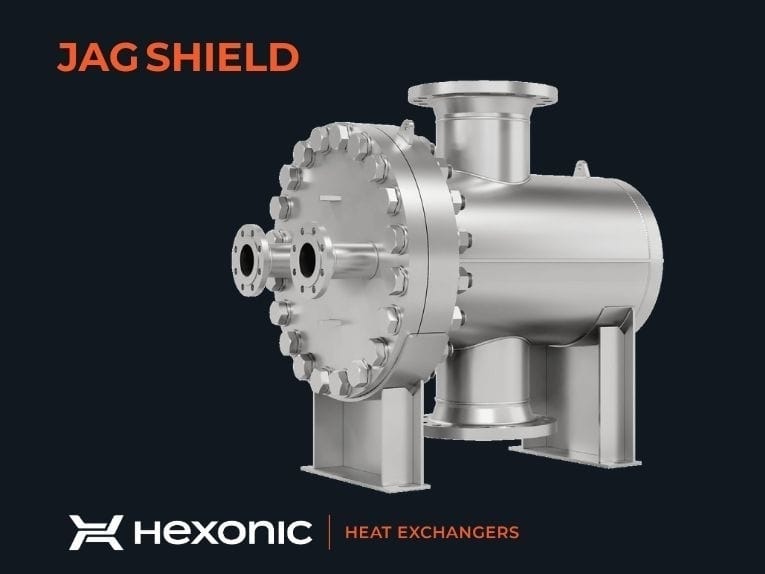

Hexonic JAG SHIELD Plate & Shell Heat Exchanger

High‑Performance Heat Transfer for Demanding Industrial Applications

Overview
The Hexonic JAG SHIELD is a cutting-edge plate & shell heat exchanger designed to combine compactness, robustness, and outstanding thermal performance. Featuring Hexonic’s patented JAG corrugated plate technology, it achieves up to 10 % higher heat transfer efficiency and 10 % lower pressure drop compared to conventional designs.

Key Benefits
Enhanced Turbulence & Heat Transfer
The innovative jagged corrugation pattern on the heating plates significantly increases flow turbulence and heat exchange surface area, accelerating heat transfer while reducing fouling

Optimized Compact Design
The compact, lightweight construction delivers high performance in tight spaces. Plates are laser-welded and robotic TIG-welded for leak-proof integrity and durability
hexonic.com

Vacuum Brazing for Strength
Vacuum brazing joins plates along a larger surface area than welding, enhancing structural strength, reliability, and high-pressure resistance

High Pressure & Temperature Ratings
Operates under extreme conditions: pressures up to 1 450 psi (~100 bar) and temperatures as high as 840 °F, making it suitable for high-demand processes

Technical Specifications:
Plate materials: Stainless Steel 316L/1.4404, 304L/1.4307, Incoloy, Hastelloy, or custom alloys
Shell materials: Carbon steel (C3–C5), stainless steel, Incoloy, Hastelloy, or customizable upon request
Plate thickness: 0.6–1.0 mm
Operating range: from –55 °F up to 840 °F, and vacuum to 1 450 psi positive pressure

Versatile Applications
Ideal across a broad spectrum of industries, including:
Refrigeration: as condensers or evaporators
Industrial heating & cooling systems
Oil & quenching oil cooling/heating
Gas heating & cooling
CIP (clean-in-place) systems
Vapour condensation & economizers
Processes with aggressive media in petrochemical/chemical sectors

Why Choose JAG SHIELD for Direct Industry Professionals?
Outstanding Efficiency
Delivers superior heat performance with lower pressure losses, ideal for optimizing energy costs.
Reliable Construction
Robust materials and vacuum-brazing ensure long-term operation under high-stress conditions.
Customizable & Compact
Modular design allows tailored configurations to fit specific processes while saving space.
Proven R&D
The six-year development behind the JAG design gives users confidence in proven, innovation-led performance
